Shale Shaker Manufacturer Delivers Dual HZS604 Linear Motion Shale Shaker for Drilling Mud Systems

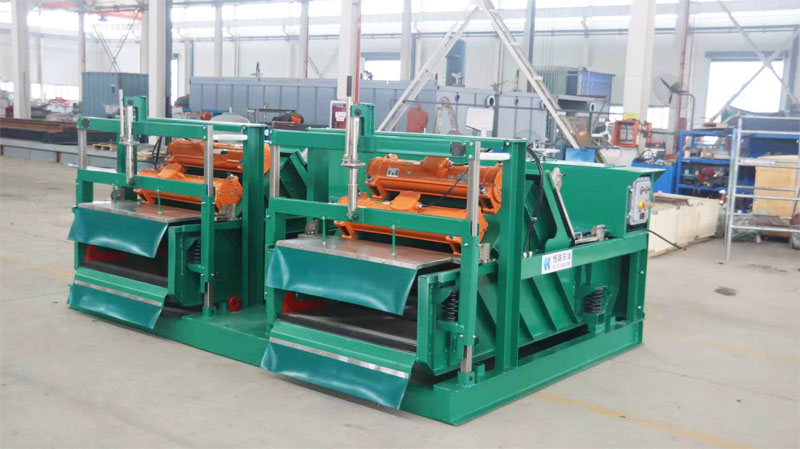

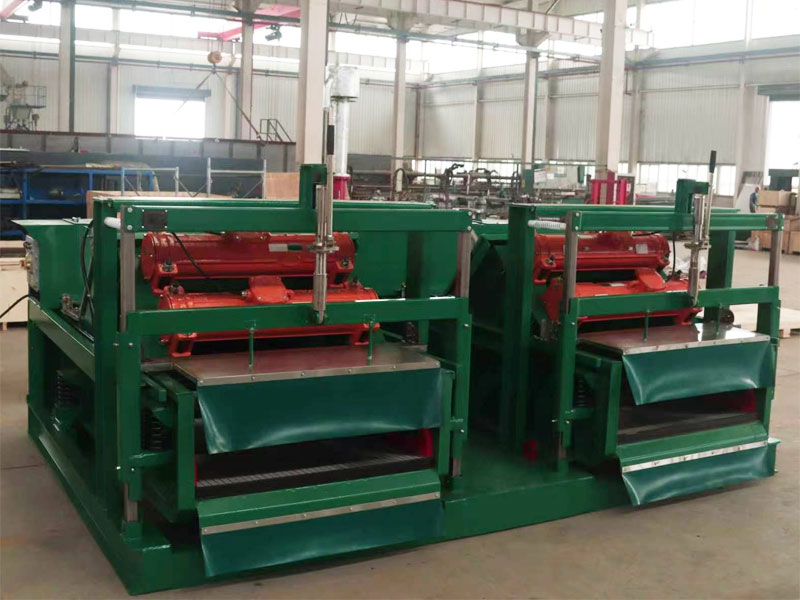

As a specialized shale shaker manufacturer​ serving the oil and gas drilling industry, we recently completed the production and commissioning of a dual HZS604 linear motion shale shaker​ — a parallel configuration that combines two HZS604 single-deck units into one integrated mud processing system. Designed for high-capacity drilling rigs, this unit is engineered to handle demanding solids control duties at the primary separation stage.
For large rigs, extended-reach wells, and high-RPM drilling operations, a single shale shaker often struggles during peak mud return rates, resulting in overflow, screen blinding, and reduced separation efficiency. The dual-unit approach provides the necessary processing margin while allowing uninterrupted operation during maintenance.

Why Parallel Two HZS604 Units?

The HZS604 is a proven workhorse in our product line. Key technical parameters of a single unit are as follows:

Parameter	Specification
Vibration Mode	Linear Motion
Capacity	144 m³/h (633 GPM)
Screen Area	2.7 m² (29 ft²)
Screen Panel	4 × 1165 × 585 mm
Motor Power	2 × 2.2 kW
Deck Angle Adjustment	-1° to +3°
Dimensions (L×W×H)	2650 × 1700 × 1750 mm
Weight	1950 kg

When two units are integrated on a common skid:

• Combined capacity: up to ~288 m³/h (1266 GPM)
• Total screen area: 5.4 m² (58 ft²)
• Shared mud distribution box​ for even flow splitting
• Independent operation: both units run simultaneously, or one operates while the other is on standby or under maintenance
• Reduced risk of overflow​ during peak mud returns

For drilling contractors, a dual shale shaker is not simply "two machines side by side" — it is a reliability upgrade that ensures primary solids control never becomes the bottleneck.

Engineering Highlights for Drilling Mud Applications

As a shale shaker manufacturer​ with deep field experience, we designed this dual HZS604 unit around real-world drilling site requirements:

1. Linear Vibration for Aggressive Cuttings Transport​
   Cuttings convey efficiently along the screen deck while drilled solids are rejected cleanly — suitable for water-based, oil-based, and synthetic drilling fluids.
2. Four-Panel Composite Frame Screens (per unit)​
   Standard 1165 × 585 mm panels allow quick change-out. Dual configuration doubles screen inventory flexibility on site.
3. Adjustable Deck Angle (-1° to +3°)​
   Fine-tune the g-force and retention time to match mud weight, solids loading, and screen mesh size — minimizing bypass while maximizing throughput.
4. Unit Isolation for Zero-Downtime Maintenance​
   Each shaker operates on independent vibration isolators and electrical controls. Screen changes, motor checks, or washdowns can be performed on one side without stopping the other.
5. Customizable Integration​
   Common base frame, mud distribution system, explosion-proof electricals, discharge direction, and screen mesh configuration can all be tailored to rig tank layouts and client specifications.

Manufacturer Perspective: Total Cost of Ownership Matters

Many buyers evaluate shale shakers on upfront price alone. However, the true cost drivers on a drilling site are:

• Mud loss from overflow events
• Frequent screen changes and motor overheating
• Poor primary separation overloading downstream desanders, desilters, and centrifuges
• Rig move downtime due to complex disassembly

The dual HZS604 strategy addresses these by:
Front-loading primary separation capacity → improving mud recovery → reducing burden on downstream equipment → lowering cost per drilled meter.
This is why we, as a shale shaker manufacturer, actively recommend dual and triple configurations for deep wells, pad drilling, and high-RPM rigs.

Typical Applications

• Oil & gas drilling rigs (land and offshore platform retrofit)
• High-capacity HDD (horizontal directional drilling) projects
• Coalbed methane (CBM) and shale gas exploration
• Drilling waste management and zero-discharge mud systems
• Retrofit upgrades for existing single-shaker rigs

Manufacturer Capabilities

We provide complete solids control solutions, including:

• Single, dual, triple, and quadruple shale shaker configurations
• ATEX/IECEx explosion-proof motors and control panels
• U-type mud distributors, side/cross feed boxes
• Screen mesh consultation (40–210 mesh range)
• Factory test run: vibration amplitude, motor rotation, sealing, and electrical check before shipment
• Overseas project support: English documentation, spare parts list, installation guidance

Conclusion

The completion of this dual HZS604 linear motion shale shaker underscores a clear industry trend: drilling contractors no longer ask a vibration screen manufacturer​ for a machine that simply "shakes." They demand high-capacity, maintainable, system-integrated equipment that protects drilling fluid value and maximizes rig uptime.
If you are evaluating shale shakers for a new rig build, a rig upgrade, or a mud system expansion, contact us for:

• Dual HZS604 layout drawings and datasheets
• Capacity calculation worksheets
• Screen mesh selection guidance
• Rig tank integration drawings

Direct from shale shaker manufacturer — engineered for drilling, built for reliability.
