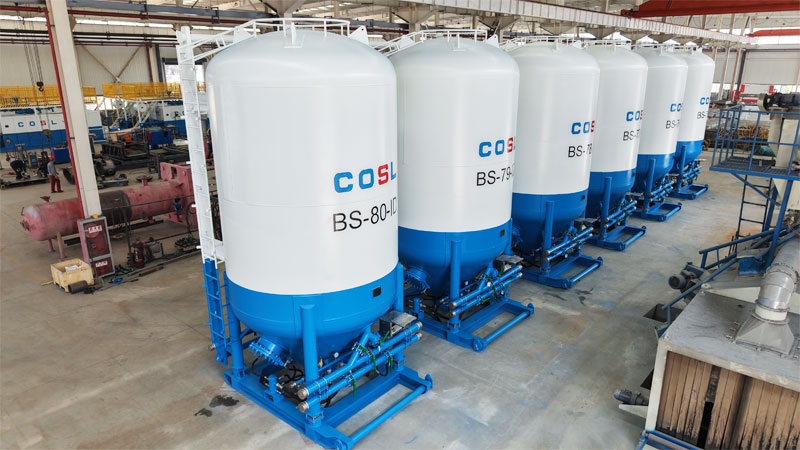

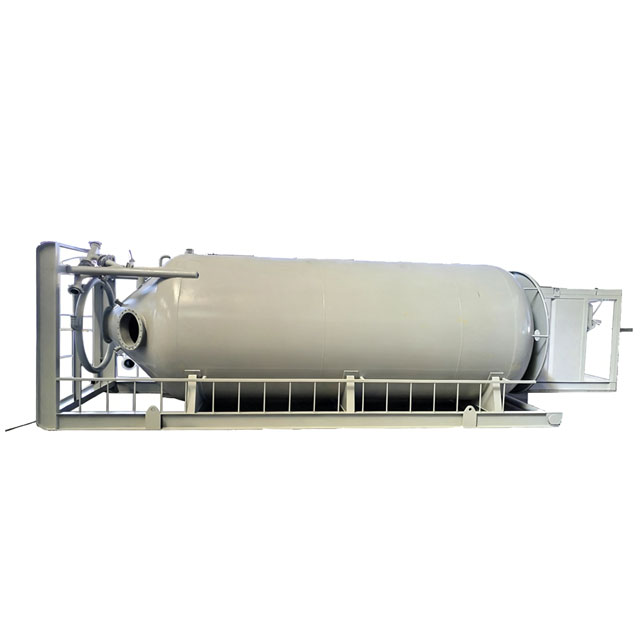

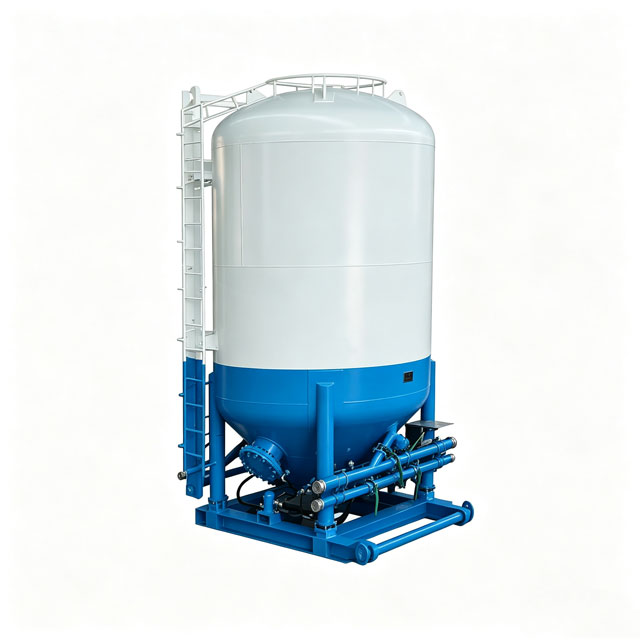

Cementing Ash Tank

The Cementing Ash Tank, also known as a Vertical Cementing Tank, is a key piece of equipment used in cementing operations in oil and gas drilling projects. It is mainly used to store and convey cementing materials such as cement, bentonite, barite powder, additives, and other bulk drilling materials.

The cementing ash tank is also referred to as a bulk material conveying system, cementing ash conveying system, bentonite storage tank, or barite powder storage tank. It is widely used at oilfield drilling sites and exploration projects for the storage and pneumatic transportation of important bulk materials required for drilling and cementing operations.

By using compressed air to fluidize the powder inside the tank, the ash tank enables materials to be conveyed efficiently and steadily through the discharge pipeline, helping ensure smooth and reliable drilling and cementing operations.

Cementing Ash Tank Technical Parameters

Advantages of Cementing Ash Tanks

1. High-Quality Materials and Reliable Construction

The cementing ash tank is manufactured using high-quality materials and advanced fabrication processes. Advanced sandblasting and surface treatment technologies provide excellent corrosion and rust resistance, improving equipment durability and reliability in demanding oilfield environments. The tank is also designed with operator safety and convenient operation in mind.

2. Multiple Specifications and Customized Design

We provide cementing ash tanks in different capacities and configurations to meet the requirements of various drilling and cementing operations.

Customized ash tanks and integrated bulk material conveying systems are also available. The tanks can be used to store and transport various bulk materials, including:

• Barite powder
• Bentonite
• Cement
• Other bulk drilling materials

3. Excellent Sealing Performance

The tank is manufactured using advanced fabrication technology and features reliable sealing performance, effectively reducing material leakage during storage and pneumatic conveying.

4. Adjustable and Accurate Discharge

The cementing ash tank can be equipped with an automatic discharge control system. The discharge rate is fast and the material flow can be adjusted according to operational requirements, providing accurate control over the quantity of material being discharged.

5. Conical Bottom Design

The bottom of the ash tank adopts a conical structure, which facilitates complete material discharge and helps minimize residual powder inside the tank.

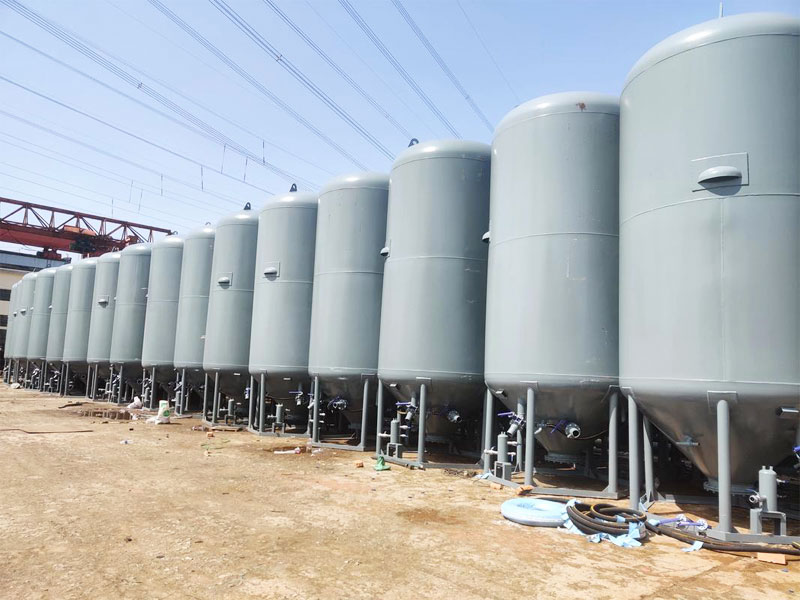

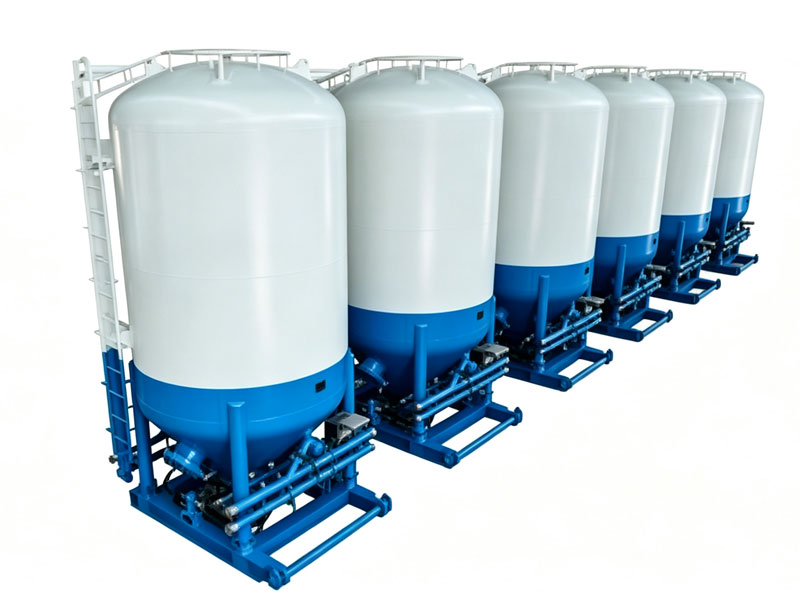

Oilfield Cementing Bentonite & Barite Powder Ash Tank

Working Principle

The cementing ash tank uses compressed air to fluidize the powder material inside the tank. After the material reaches a suitable fluidized state, the corresponding valves are opened and the material is conveyed through the discharge pipeline to the designated location.

This pneumatic conveying method provides efficient and stable transportation of cementing and drilling materials.

Product Features

The cementing ash tank offers several advantages, including:

• Fast material discharge
• Adjustable discharge rate
• Accurate material quantity control
• Efficient pneumatic conveying
• Low residual material
• Reliable and stable operation
• Suitable for harsh oilfield environments

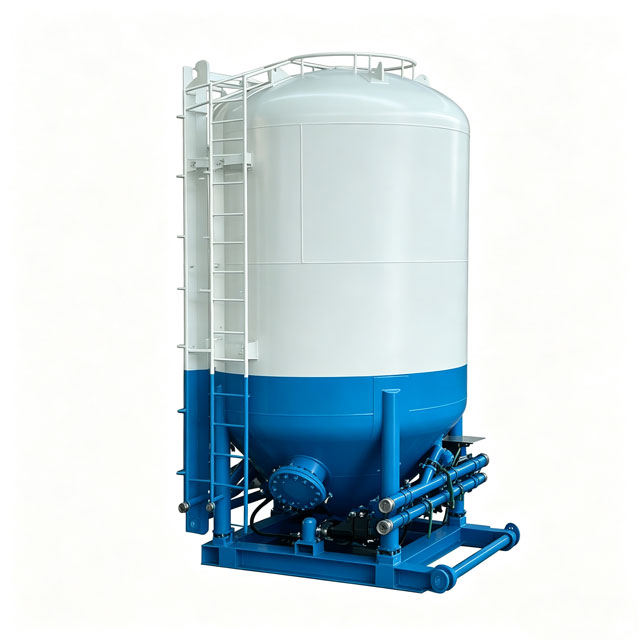

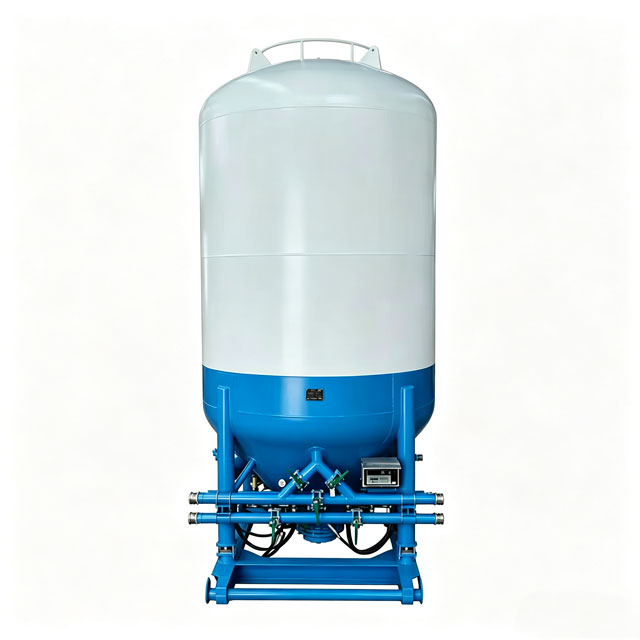

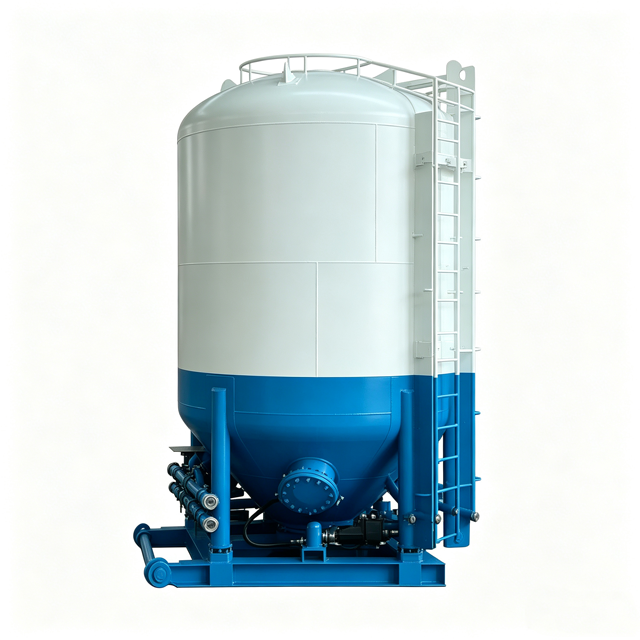

Main Components of a Cementing Ash Tank

A typical vertical cementing ash tank mainly consists of:

1. Inlet Pipe – Used for loading bulk powder materials.
2. Exhaust Pipe – Used for air discharge and pressure management.
3. Tank Base – Provides stable support for the tank.
4. Fluidizing System – Uses compressed air to fluidize the powder.
5. Discharge Pipe – Used for pneumatic transportation of materials.
6. Pressure Gauge – Monitors the internal tank pressure.
7. Safety Valve – Provides pressure protection during operation.
8. Lifting / Towing Lugs – Used for lifting, handling, or transportation.

Cementing Ash Tank Operating Procedure

Before operating the cementing ash tank, follow the recommended procedures below:

1. Place the equipment on solid and level ground around the drilling site and secure it firmly.
2. Before operation, check whether all valves operate smoothly and are in good condition.
3. Confirm that all valves are in their correct operating positions.
4. Check whether the material inlet, discharge, and exhaust pipelines are unobstructed.
5. Inspect all pipeline connections to ensure they are properly connected and securely fastened.
6. Check the pressure gauge, safety valve, and fluidizing system before introducing compressed air.
7. During operation, monitor the tank pressure and material discharge to ensure safe and stable operation.

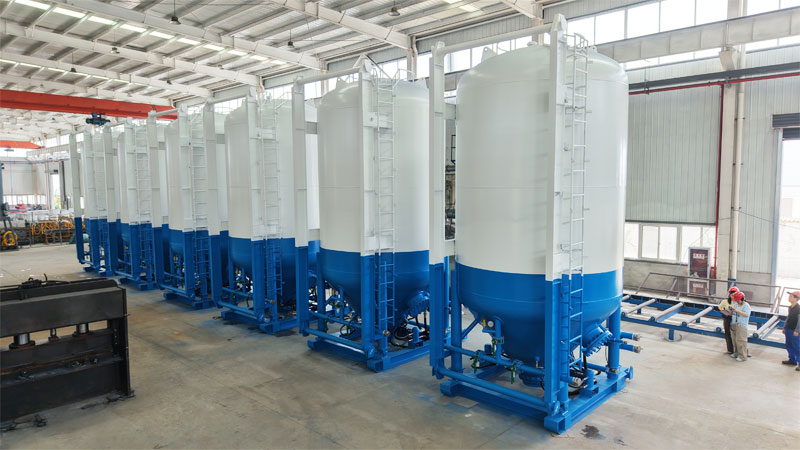

Professional Cementing Ash Tank Manufacturer

As a professional cementing ash tank manufacturer, HL Petroleum has extensive experience in equipment design, engineering, and manufacturing. We can design and manufacture cementing ash tanks and integrated bulk material conveying systems with different capacities, structures, and configurations according to specific drilling-site requirements.

Our cementing ash tanks and ash conveying systems feature optimized structural designs and practical engineering solutions. They provide fast discharge, accurate material measurement, adjustable discharge capacity, efficient pneumatic conveying, and minimal residual material.

Whether you need a bentonite storage tank, barite powder storage tank, cementing ash tank, vertical bulk powder tank, or complete pneumatic ash conveying system, HL Petroleum can provide customized solutions for oilfield drilling and cementing operations.

Contact HL Petroleum today for cementing ash tank specifications, technical solutions, and customized quotations.
