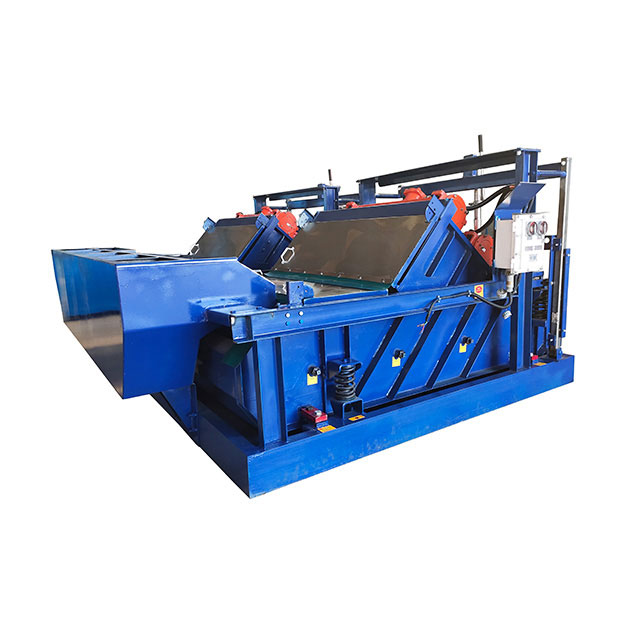

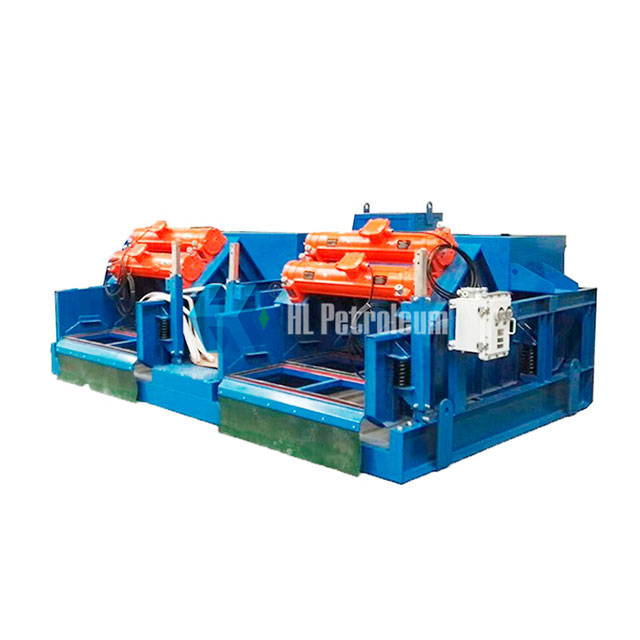

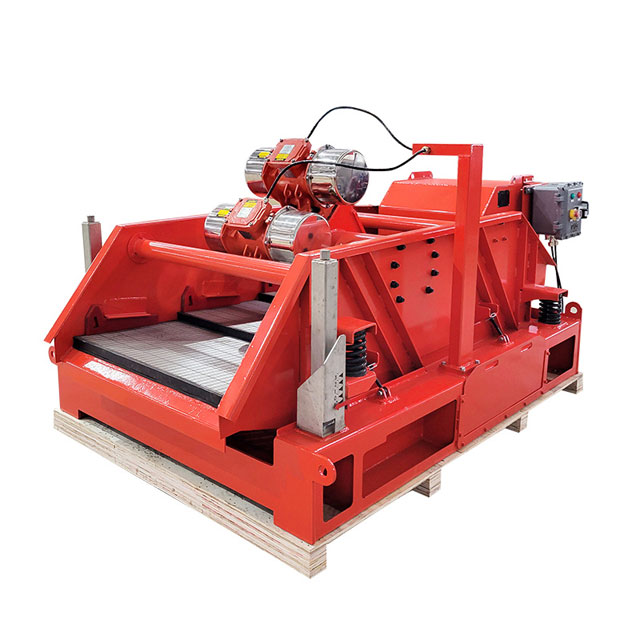

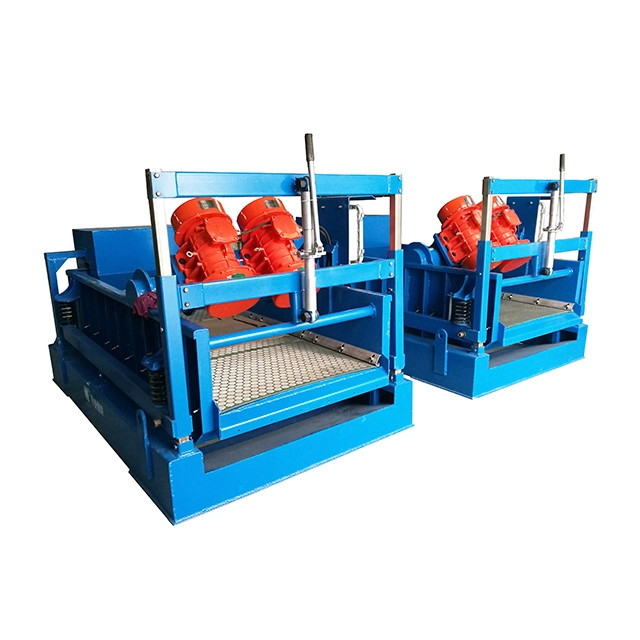

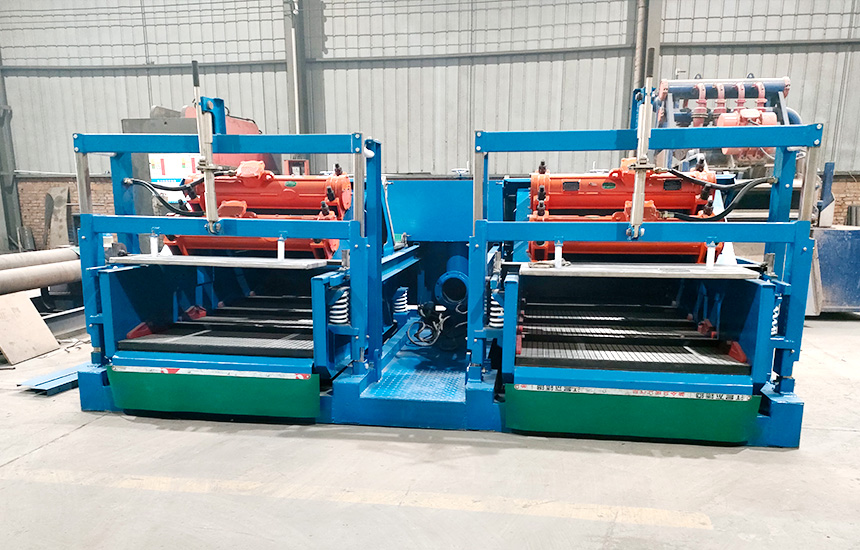

Balanced Elliptical Motion Shale Shaker
Product Overview:
1. 2.7㎡ Large filtration area
2. High efficiency of linear vibration track
3. Any combination of double, triple, quadruple
4. Stainless steel splash-proof cover, humanized design
5. Frame type composite screen, strong and durable
6. Screen box inclination adjustment device to prevent slurry running
Balanced Elliptical Motion Shale Shaker Details
The balanced elliptical motion shale shaker is a new type of mud shale shaker developed by our company based on years of practical experience on site. The shale shaker can be set to operate according to site needs. When the site needs to reduce the mud moisture content, the elliptical motion mode is turned on. The residence time of the mud on the screen surface can be increased to achieve the purpose of reducing the solid water content; when the mud volume at the wellhead is too large, the linear motion mode is turned on at this time, the vibrating screen processing capacity becomes larger, and the drilling fluid can be quickly cleaned.
The balanced elliptical motion shale shaker produced by Xi'an HL has stable performance, low noise, and is suitable for various working conditions. It is an indispensable mud processing equipment in modern drilling engineering.
Balanced Elliptical Motion Shale Shaker Parameters
|
Model |
HTZS804 |
2HTZS804 |
HTZS605 |
2HTZS605 |
|
Vibration Mode |
Elliptical |
Elliptical |
Linear/ Elliptical |
Linear/ Elliptical |
|
Capacity |
35L/S |
70L/S |
45L/S |
90L/S |
|
Screen Area |
2.7㎡ |
5.4㎡ |
3.4㎡ |
6.8㎡ |
|
Screen Qty(Pcs)&Size |
4×1080×830mm |
8×1080×830mm |
5×1165×585mm |
10×1165×585mm |
|
Motor Power |
2.2+2.5kW |
2×(2.2+2.5)kW |
2×2.5+0.8kW |
2×(2×2.5+0.8)kW |
|
Deck Angle Range |
-1°～3° |
-1°～3° |
-1°～3° |
-1°～3° |
|
Dimension: L×W×H(mm) |
3150×1800×1630 |
3150×1800×1630 |
2850×1750×1650 |
2850×1750×1650 |
|
Weight |
2000kg |
4500kg |
2350kg |
4900kg |
