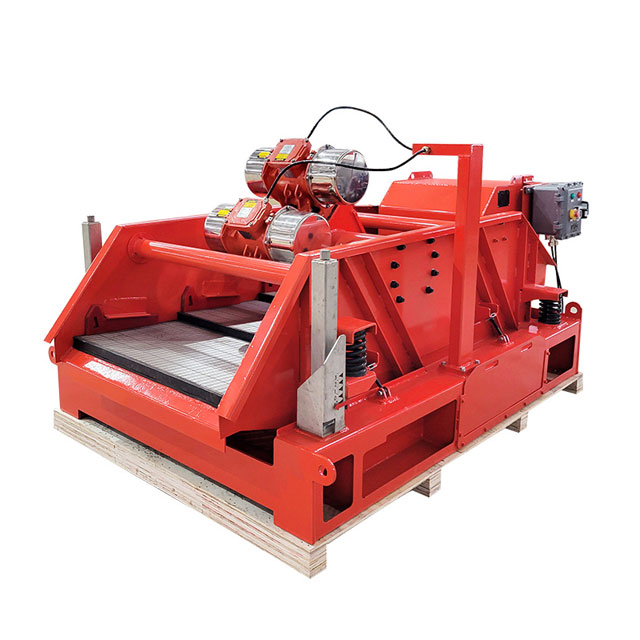

Mud Shale Shaker
Product Overview:
HL Mud Shale Shaker design features:
1. Extra large filtering area, which helps to improve work efficiency.
2. The angle of the screen box is adjustable to effectively prevent slurry from running.
3. The screen box is heat treated to cope with high-intensity continuous work.
4. The hook-edge plate screen can greatly save costs.
5. The frame-type combined screen and stainless steel splash guard are stable and durable.
6. Complete categories, customizable, suitable for various scenarios.
Mud Shale Shaker Details
Drilling fluid mud Shale Shaker belongs to the first-level solid control equipment. Its function is to separate larger solid particles in the drilling fluid through the vibration of the machine body. It is widely used in oil and gas drilling solid control system, HDD horizontal directional drilling, coal gas layer drilling, shale gas mining, river dredging, environmental purification and other fields.>>Send an Enquiry sales@hlsolidscontrol.com<<
The Shale Shaker is usually composed of a base assembly, a screen box assembly, a screen box inclination adjustment device assembly, a splash device assembly, a mud box assembly, an electrical control system assembly and other components. According to its working principle, the Shale Shaker can be divided into two types: a linear motion shale Shale Shaker and a balanced elliptical motion mud Shale Shaker.
HL mud Shale Shaker can realize three combinations: single Shale Shaker, double Shale Shaker, and triple Shale Shaker. We also design and produce a variety of Shale Shaker equipment such as high-frequency conversion Shale Shaker, dry Shale Shaker, and negative pressure Shale Shaker.>>Send an Enquiry sales@hlsolidscontrol.com<<
HL Petroleum is a Chinese manufacturer of special solid control equipment. We have 20 years of R&D and production experience. HL mud Shale Shaker has stable performance, low noise, high strength, large vibrating screening area, adjustable screen box angle, and can be used with bottom mud cleaner for solid phase separation. It is an indispensable mud purification and treatment equipment in modern drilling projects.>>Send an Enquiry sales@hlsolidscontrol.com<<
Mud Shale Shaker Parameters
|
Model |
HZS703 |
HZS803 |
HZS604 |
HZS605 |
|
Vibration Motion |
Linear |
Linear |
Linear |
Linear |
|
Capacity |
30L/S |
35L/S |
40L/S |
45L/S |
|
Screen Area |
2.2㎡ |
2.7㎡ |
2.7㎡ |
3.4㎡ |
|
Screen Specifications |
3×1050×700mm |
3×1080×830mm |
4×1165×585mm |
5×1165×585mm |
|
Motor Power |
2×1.5kW |
2×1.8kW |
2×2.2kW |
2×2.5kW |
|
Deck Angle Range |
-1°～3° |
-1°～3° |
-1°～3° |
-1°～3° |
|
Dimensions |
2850×1590×1550 |
3150×1800×1630 |
2650×1700×1750 |
2850×1750×1650 |
|
Weight |
1680kg |
1800kg |
1950kg |
2350kg |
