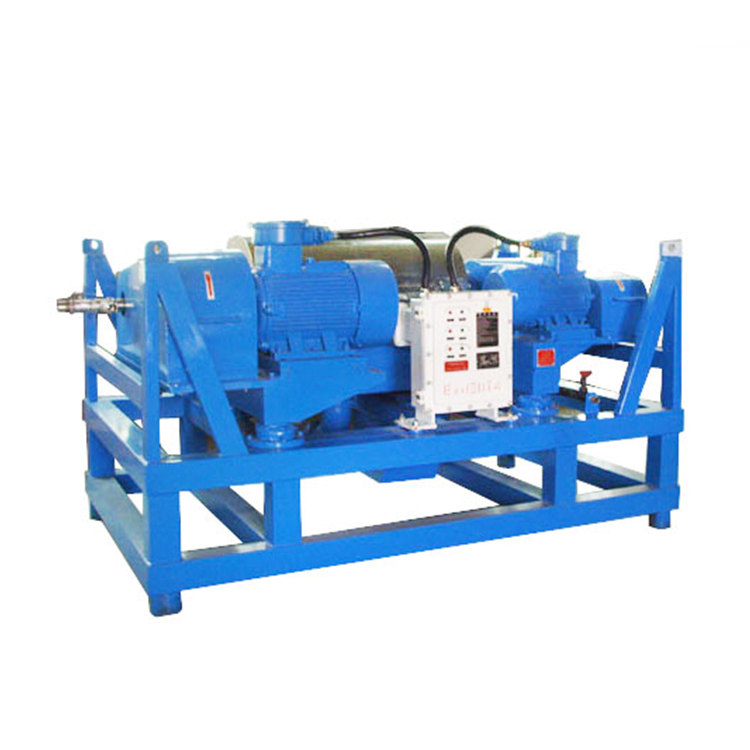

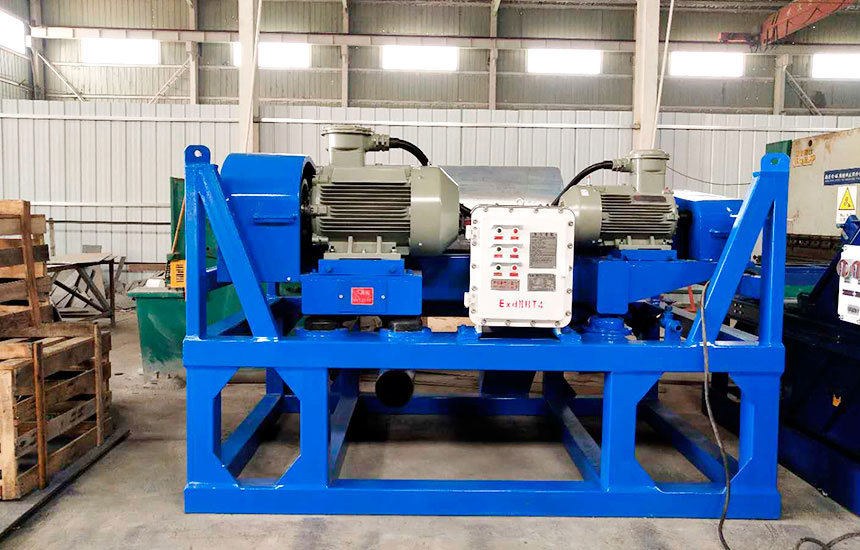

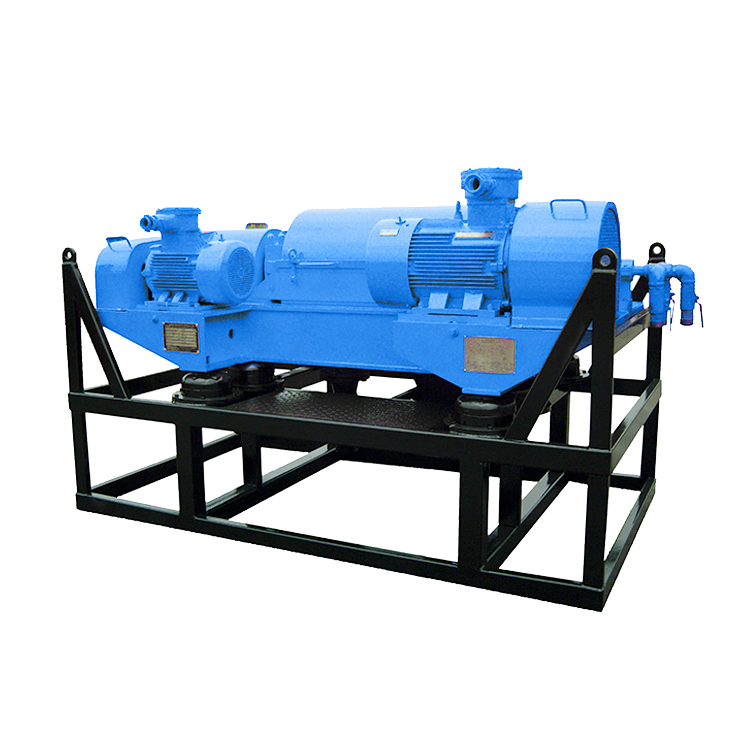

  • Drilling Mud Centrifuge

    • Drilling Mud Centrifuge
    • Drilling Mud Centrifuge
    • Drilling Mud Centrifuge

    Product Overview:

    1.The most widely used model
    2.The centrifuge bowl is made of wear-resistant and corrosion-resistant material
    3.Two options of power frequency and frequency conversion
    4.Blade sprayed with tungsten wear-resistant treatment, long life
    5.One machine for multiple purposes, recycling different materials

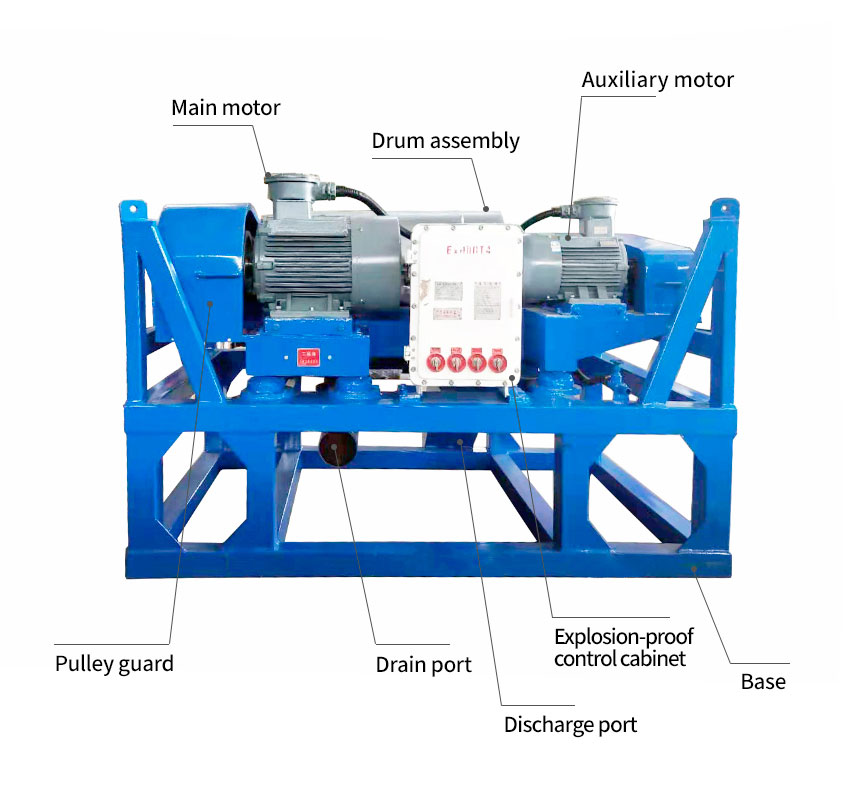

    Drilling Mud Centrifuge Details

    Drilling mud centrifuge model LW450×1250-N for separation of detrital material of drilling muds is widely used in solid control system for drilling mud to separate the solids phase of mud, remove harmful fine drill solids such as debris, etc. in the mud fluid, or recover weighting materials such as barite etc. so as to reduce the cost of mud fluid.

    Model LW450×1250-N centrifugeswith line frequency control system are split into model N1, model N2 and model N3 based on the rated speed of the bowl, respectively representing the rated speed of 1800r/min, 2000r/min and 2200r/min. In addition, centrifuges with variable frequency control system are available.

    Drilling Mud Centrifuge Parameters

    Technical parameters



    Max. rotation speed of bowl



    Differential speed of conveyor









    Max. throughput

    (specific gravity <1.1)



    Main motor model



    Main motor power



    Auxiliary motor speed



    Auxiliary motor power



    Auxiliary motor power



    Auxiliary motor speed



    Overall dimension



    Overall weight

    (including feed pump)



    Explosion protection mark : ExdⅡBT4Relative humidity of ambient air: ≤95%Ambient temperature: -20°C~+50°C3. Drill Cuttings Centrifuge Circumstance Conditions
    Corrosive environment: No active gas or steam that will destroy the metal
    Degree of electrical protection: IP54

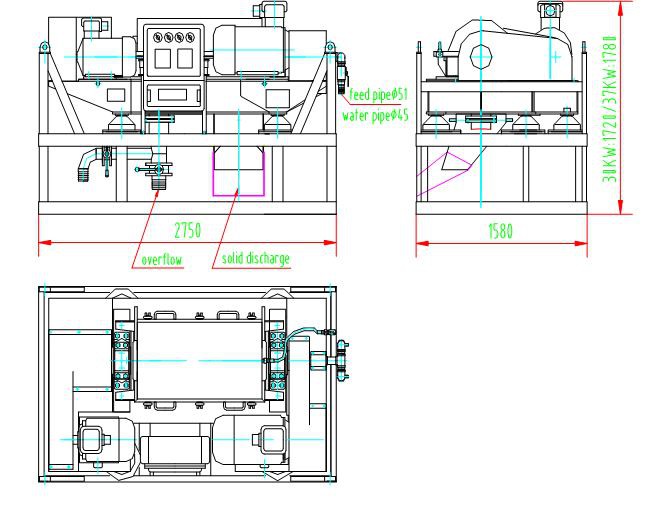

    Drilling Mud Centrifuge Drawings

    Drilling Mud Centrifuge Drawings

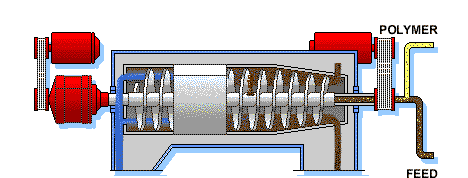

    Drilling Fluid Centrifuge Working principle

    When the drilling fluid is continuously fed from the feed pipe, it enters the bowl from the feed hole, and the bowl rotates at a high speed; under the action of the differential, the auger rotates at a speed slightly lower than that of the bowl. It forms a separation-conveying mechanism with a certain differential speed and high-speed rotation in the same direction with the screw pusher.
    Drilling Fluid Centrifuge Working principle

    Under the action of centrifugal force hundreds or even thousands of times greater than gravity, an annular liquid pool is formed in the rotating bowl. Due to the difference in specific gravity between the solid phase and the liquid phase, the solid particles settle to the inner wall of the rotating bowl to form sludge. Under the relative movement of the blade and the rotating bowl, the sediment is pushed to the small end of the rotating bowl and discharged from the slag discharge hole. The clarified liquid phase of the inner ring is discharged through the overflow hole through the spiral channel, so as to realize the continuous separation of solid and liquid production process.

    Mud Centrifuge
    Drilling Mud Centrifuge

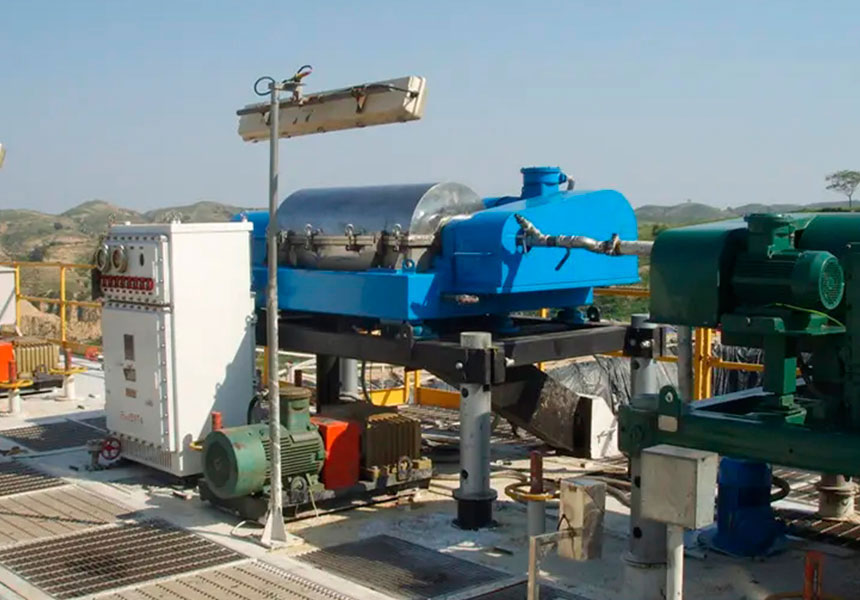

    Drilling Mud Centrifuge Using site
    Drilling Mud Centrifuge Using site
