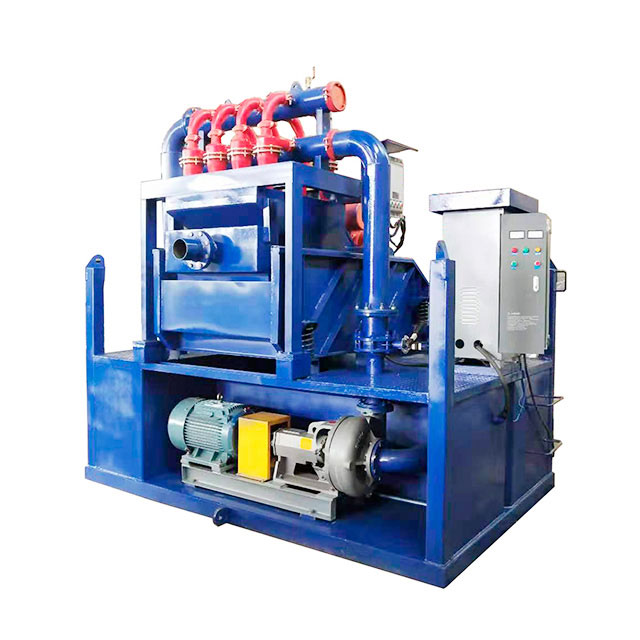

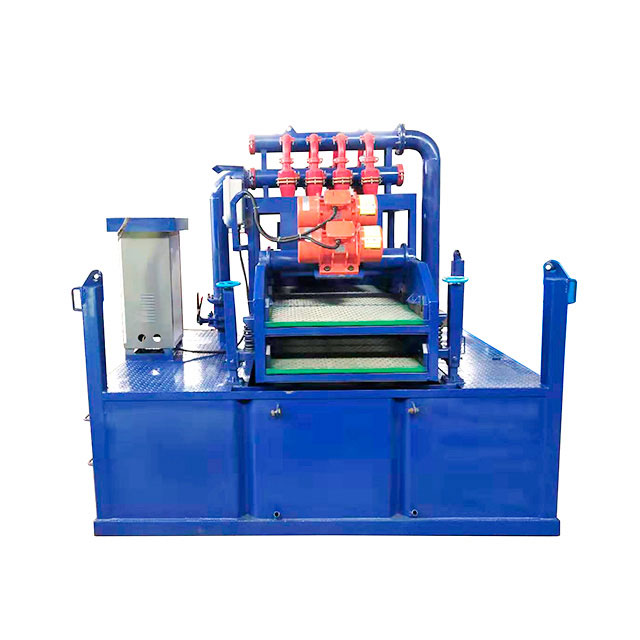

  • Mud Recycling System

    • Mud Recycling System
    • Mud Recycling System
    • Mud Recycling System

    Product Overview:

    1. The easy-to-operate vibrating screen has a low failure rate, and is easy to install, use and maintain.
    2. The vibration motor has high power, low energy consumption and significant energy saving effect.
    3. The centrifugal slag pump with high wear resistance and corrosion resistance has the characteristics of advanced structure, high degree of generalization, reliable operation and convenient disassembly and maintenance. The heavy wear parts and heavy bracket make it suitable for long-term transportation and strong abrasion concentrated slurry.
    4. The unique backflushing device can effectively prevent the slurry tank from silting and spreading the slurry, thus keeping the equipment running for a long time.

    Mud Recycling System Details

    The mud water recycling device for directional drilling crossing is a new type of mud developed for the wall protection mud used in small pile construction (including percussion drill), pipe jacking engineering, bridge pile foundation engineering, construction engineering, underground tunnel shield engineering and trenchless engineering construction Purification treatment equipment. The mud purifier can effectively control the slurry water quality of the construction slurry, separate the solid particles in the slurry, increase the porosity of the pile foundation, reduce the amount of bentonite, reduce the cost of slurry production, and realize the environmentally friendly transportation and slurry discharge to meet the site requirements of environmental protection construction.>>Send an Enquiry sales@hlsolidscontrol.com<<
    mud water recycling device

    Mud Water Recycling Device Parameters

    Model

    Capacity

    (m3/h)



    Separation Particle

    d50(µm)



    Slag Separation Capacity

    (t/h)



    Power

    (kW)



    Dimensions:

    LxWxH (mm)

    Weight

    (kg)

    HMC20

    20

    16

    ≤10

    4

    1500×800×1100

    700

    HMC40

    40

    20

    10~20

    7.7

    1800×1100×1350

    1500

    HMC60

    60

    20

    20~30

    13.6

    2750×1850×2200

    2700

    HMC80

    80

    20

    25~40

    18

    3000×2100×2750

    3500

    HMC100

    100

    25

    30~50

    25

    3300×2100×2750

    3850

    HMC120

    120

    30

    30~60

    33.6

    3550×2250×2830

    4500

    HMC160

    160

    35

    40~60

    41

    3550×2250×2850

    4800

    HMC200

    200

    40

    50~70

    50

    3750×2350×2850

    5100

    >>Send an Enquiry sales@hlsolidscontrol.com<<

    mud water recycling device

    Mud Water Recycling Device Features

    1. Adequate purification of the mud is conducive to controlling the performance index of the mud, reducing sticking accidents and improving the quality of hole making.

    2. The effective separation of muck and soil is beneficial to improve the hole-making effect

    3. The repeated use of mud is conducive to saving slurry materials and reducing construction costs

    4. The closed-circuit mud circulation method and the reduced water content of the slag material are beneficial to reduce environmental pollution.>>Send an Enquiry sales@hlsolidscontrol.com<<

    Mud Water Recycling Device Using site
    mud water recycling device
