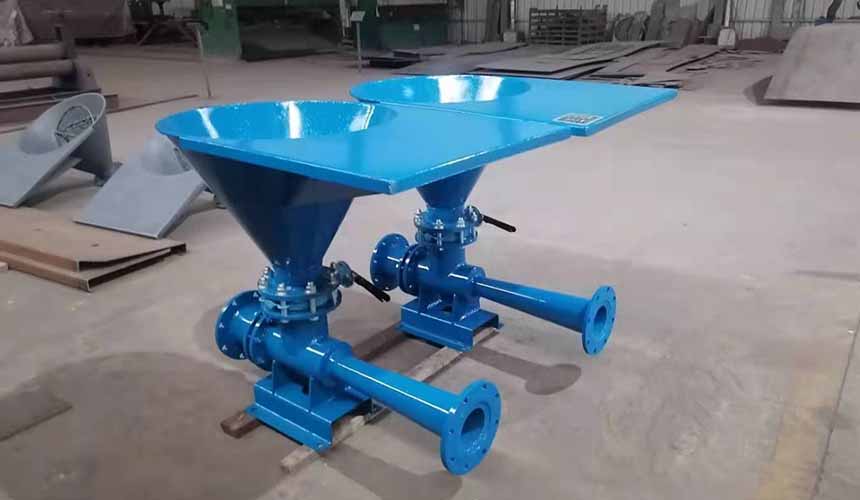

  • Venturi Hopper

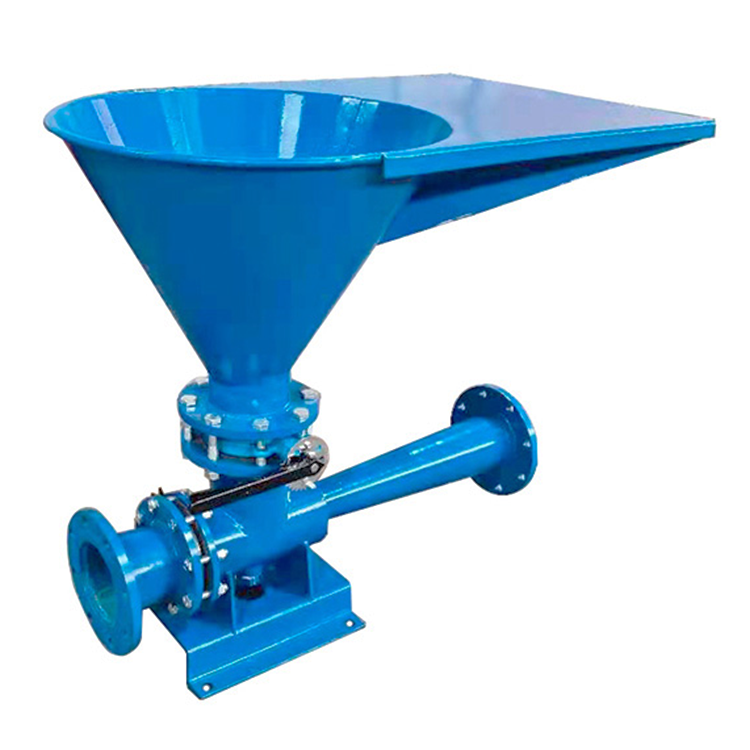

    • Venturi Hopper

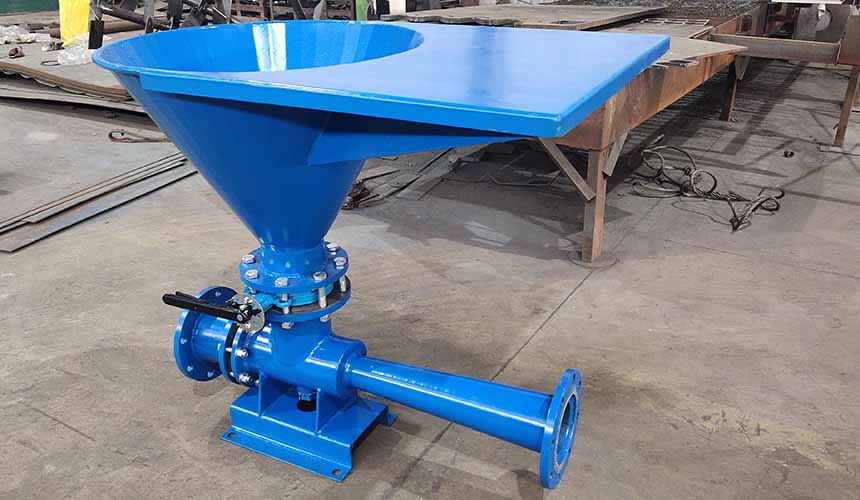

    • Venturi Hopper

    Product Overview:

    The use of the Venturi Hopper ensures that the components of the drilling fluid are properly mixed to obtain the desired drilling fluid properties. In this way, drilling operations can be performed under more controlled conditions, ensuring consistent performance of drilling fluids at different depths and environments.

    Venturi Hopper Details

    The Venturi Hopper developed by our company is a device specially designed for oil drilling solids control system. Its main function is to provide drilling fluid weighting and configuration functions for drilling depths from 1500 meters to 6000 meters. The Venturi Hopper consists of a mixing hopper, jet mixer and manifold valves mounted on a base.
    Venturi Hopper
    Venturi Hopper Manufacturer
    HL Venturi Hopper Parameters
    Model HLD150 HLD150-Y HD150-X
    Capacity(m³/h) 180 240 150
    Inlet pressure(MPa) 0.32-0.42 0.32-0.42 0.38-0.42
    Hopper dia(mm) 700 700 700
    Inlet dia(mm) 125/150 150 125
    Outlet dia(mm) 150 150 150
    Weight (kg) 145 180 200
    Venturi Hopper's performance is very reliable, ensuring the safety of the operation, and its portability also makes it easier to operate in complex environments. This is very important in the oil drilling field to ensure the safety of the staff and ensure the efficient drilling process.
