  • Mission Centrifugal Pump Head

    • Mission Centrifugal Pump Head
    • Mission Centrifugal Pump Head
    • Mission Centrifugal Pump Head
    • Mission Centrifugal Pump Head
    • Mission Centrifugal Pump Head
    • Mission Centrifugal Pump Head

    Product Overview:

    Main design features of HL HCP Mission pump:
    1. Mechanical seal and packing seal double-stage seal, more reliable sealing.
    2. Open impeller structure, can convey high-density and high-viscosity fluid media.
    3. Fluid mechanics blade curve design, high working efficiency.
    4. Key components are made of wear-resistant materials and have a long service life.
    5. Complete models to meet various needs.
    6. External impeller adjustment structure, easy to adjust.

    Mission Centrifugal Pump Head Details

    HL HCP Series sand pumps are 100% interchangeable with Mission Magnum pumps. The HL HCP Series centrifugal pump head is an important part of the Mission centrifugal pump, which refers to the rest of the Mission pump except the motor and pump body, including impellers, bearings, oil rings, sealing rotating parts (including shafts) and other components. The pump head is made of different materials such as metal, plastic, rubber, etc. according to different needs, and has good high temperature resistance, corrosion resistance and wear resistance.

    HL HCP series centrifugal sand pump is the core equipment in the drilling fluid circulation system, suitable for oilfield drilling desander, desilter, mixing pump, mud pump, truck-mounted drilling rig, metering tank, water tank or water cooling system. The pump has stable performance, long service life, easy maintenance, high cost performance, and can provide the best customized options for the intended application according to the fluid conditions.

    HL HCP series centrifugal pump is currently widely used in land and offshore drilling platforms around the world, and is suitable for industry, construction, chemical industry, agriculture and other fields.


    HL HCP Mission centrifugal pump product type

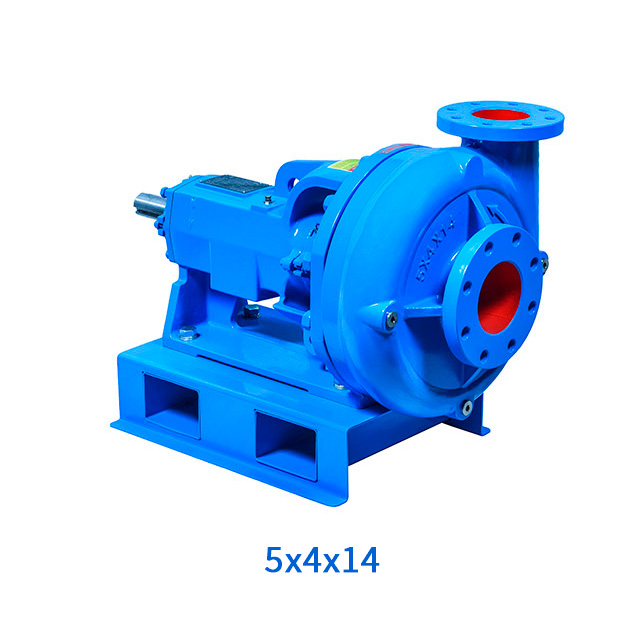

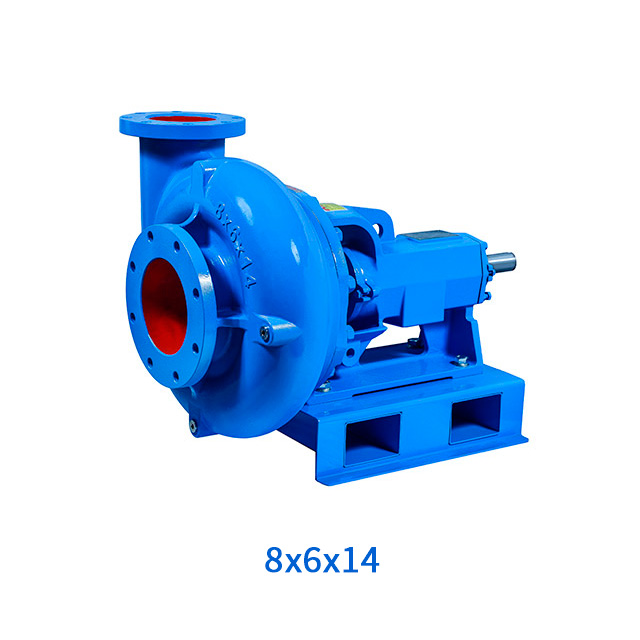

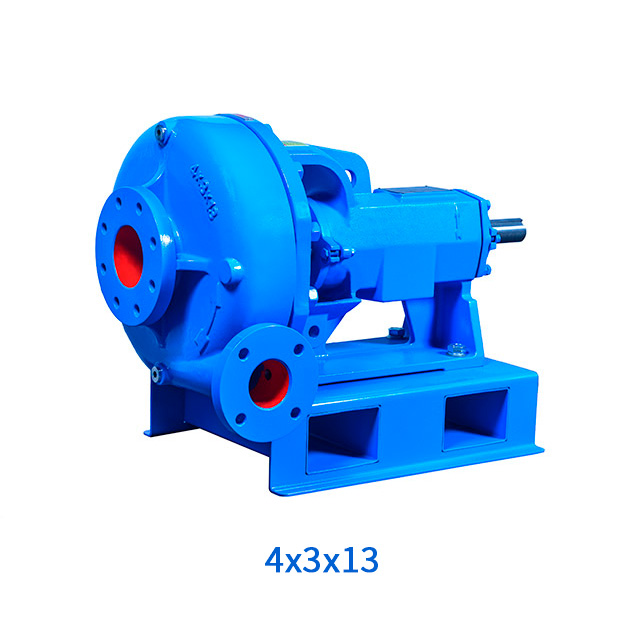

    HL HCP series 8×6×14, 8×6×11 model Mission pump is mainly used to provide a certain displacement and pressure for desander, desilter, mixing pump, mud pump. 6×5×14, 6×5×11 model Mission pump is mainly used for truck-mounted drilling rig. 4×3×13 model Mission pump is mainly used in conjunction with metering tank, also known as metering pump. 3×2×13 model Mission pump is mainly used in conjunction with water tank or water cooling system, also known as clean water pump.


    HL HCP Mission centrifugal pump structure explosion diagram

    HL HCP series Mission centrifugal pump Structure Detail Table
    Serial number Part name Part number Quantity Material
    1* Pump casing See the table below  1 Hard Iron
    1A Pump casing gasket 10399-46-1 1 Vellumoid
    1B Pump casing tightening nut 3/4 3932-61 12 Stl
    1C Pump casing tightening bolt 3/4X85 3862-76 12 Stl
    1D Square head screw plug 3/8   8505-04-01 1 Stl
    1E Square head screw plug 1/2 8505-04-01 1 Iron
    2* Impeller See the table below 1 Iron
    2A Impeller See the table below 1 Viton
    2B O-ring 46.2X1.8 19110-72 1 Stl
    2C Impeller locking washer   1 Stl
    3* Impeller locking bolt   1 Hard Iorn
    3* Mechanical seal box 22223-01-30 1 Hard Iorn
    3A Packaging seal box 20614-01-30 2 Stl
    4 Mechanical seal box tension bolt 3861-117 1 Bronze
    5 Packaging sleeve 20622A 1 Tungsten Carbide
    5A Mechanical seal 22451-1 3 Kevlar
    6 Packaging 12X12 25014-04M-B 2 Stl
    7 L bolt assembly B3701A 1 AISI 4140
    7A Wear-resistant sleeve (mechanical seal) 20943-21 1 AISI E7140
    7A Wear-resistant sleeve (packing seal) 20613-21G-7A 1 AISI E7140
    7B Key 4372-5-21 1 416SS
    7C O-ring 51.5X2.65 23444-01-72 1 Viton
    8 Water retaining ring 22210-1A 1 Bronze
    8A O-ring 63X2.65   1 Viton
    9 Bearing seat 20618-12-1 1 Cast Iron
    9A
    9B
    9C Square head screw plug 1/2 8505-05 1 Iron
    9D Breathing nozzle 8267-01 1 Stl
    9E
    9F
    9G Pump housing push-out bolt 2538-1A 3 Stl
    10A Inner bearing cover 20626 1 Iron
    10B Inner bearing cover gasket 20625 1 Vegetable Fiber
    10C Oil seal 20619-01 2 Buna-n
    10D Inner bearing cover bolt 3861-1 2 Stl
    10E Inner bearing cover nut 3932-2 2 Stl
    10F
    10G Grease nipple NPT1/8 21641-01 1 Stl
    11 Inner bearing NUP313E N/A 1 Vendor
    12 Axial adjustment sleeve 20624-01-01 1 Iron
    12A O-ring 140X3.55 7496-253 1 Buna-n
    12B Axial adjustment sleeve bolt 3861-138 4 Stl
    12C Axial adjustment sleeve push-out nut 3932-62 2 Stl
    13 Outer bearing cover 20617-01-01 1 Iron
    13A Grease nipple NPT1/8   1 Stl
    13B O-ring 120X3.55 7496-26 1 Buna-n
    13C Oil seal 47.63X69.85X9.525 20619-02 1 Buna-n
    13D Outer bearing cover bolt 3861-139 2 Stl
    14 Bearing 7311B/DB N/A 1 Vendor
    14A Locking washer 6124-4 1 Stl
    14B Locking nut 6123-4 1 Stl
    1* Pump casing, 3x2x13 19203-01-30A 1 Hard Iron
    1* Pump casing, 4x3x13 19205-01-30A 1 Hard Iron
    1* Pump casing, 5x4x11 19222-01-30A 1 Hard Iron
    1* Pump casing, 6x5x11 19122-01-30A 1 Hard Iron
    1* Pump casing, 6x5x14 19123-01-30A 1 Hard Iron
    1* Pump casing, 8x6x11 19763-01-30A 1 Hard Iron
    1* Pump casing, 8x6x14 19117-01-30A 1 Hard Iron
    1* Pump casing, 10x8x14 20937-01-30A 1 Hard Iron
    2* Impeller, 3x2x13 pump 19204-XX-30 1 Hard Iron
    2* Impeller, 4x3x13 pump 19206-XX-30 1 Hard Iron
    2* Impeller, 5x4x14 pump 19224-XX-30 1 Hard Iron
    2* Impeller, 6x5x11 pump 19121-XX-30 1 Hard Iron
    2* Impeller, 6x5x14 pump 19121-XX-30 1 Hard Iron
    2* Impeller, 8x6x11 pump 19121-XX-30 1 Hard Iron
    2* Impeller, 8x6x14 pump 19116-XX-30 1 Hard Iron
    2* Impeller, 10x8x14 pump 21867-XX-30 1 Hard Iron
    XX or A0 - Impeller Designator - The first column X is equal to the impeller diameter in inches minus 4. Thus 10"= 6, 9"= 5, 8"=4, etc… 14" uses the letter A.
    The second X is a multiple of 1/8". So 1/8"= 1, 1/4"= 2, 1/2"= 4, etc… So a 10.5" impeller is coded 64, a 12" impeller is coded 80, a 13.25" impeller is coded 92 etc…


    HL HCP Mission centrifugal pump Head dimensions

    Pump head flange size table
    Size ID OD  BC
    Inches
    BC
    Metric
    T
    thickness
    N
    Number of holes
    Aperture Φ
    (Inch) (mm) (mm) (mm) (mm) (mm)   (mm)
    2 50.8 152.4 120.7 125 16 4 19
    3 76.2 190.5 152.4 160 19 4 19
    4 101.6 228.6 190.5 180 24 8 19
    5 127 254 215.9 210 24 8 22.2
    6 152.4 280 241.3 240 25 8 22.2
    8 203.2 343 298 295 28.5 8 22.2
    10 254 330 362 350 30 12 25.4


    Pump Head Dimensions Table
    Pump Model A
    (mm)
    B
    (mm)
    E
    (mm)
    F
    (mm)
    G
    (mm)
    L
    (mm)
    P
    (mm)
    X
    (mm)
    Y
    (mm)
    Z
    (mm)
    CP
    (mm)
    DD
    (mm)
    weight
    (Kg)
    3x2x13 228.6 498.5 88.9 392.1 454 222.2 58.7 260 95.3 177.8 743 227 200
    4x3x13 228.6 498.5 88.9 392.1 454 238 58.7 260 108 171.5 746 227 200
    6x5x11 228.6 498.5 88.9 392.1 454 306.4 58.7 280 146 152.4 777.8 227 230
    6x5x14 228.6 498.5 88.9 392.1 533.4 306.4 58.7 280 146 152.4 777.8 266.7 250
    8x6x11 228.6 498.5 88.9 392.1 508 336.5 58.7 355.5 159 212.7 793.8 254 265
    8x6x14 228.6 498.5 88.9 392.1 598.5 336.5 58.7 355.5 159 212.7 793.8 300 280

    FAQ

    Q1: How can I make order online?

    A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.

    Q2: Do you have MOQ limit?

    A: The MOQ is 1 set.

    Q3: What's your warranties?

    A: 1 year after delivery

    Q4: Can I buy parts separately?

    A: Yes, all of the pump spare parts can buy separately.
