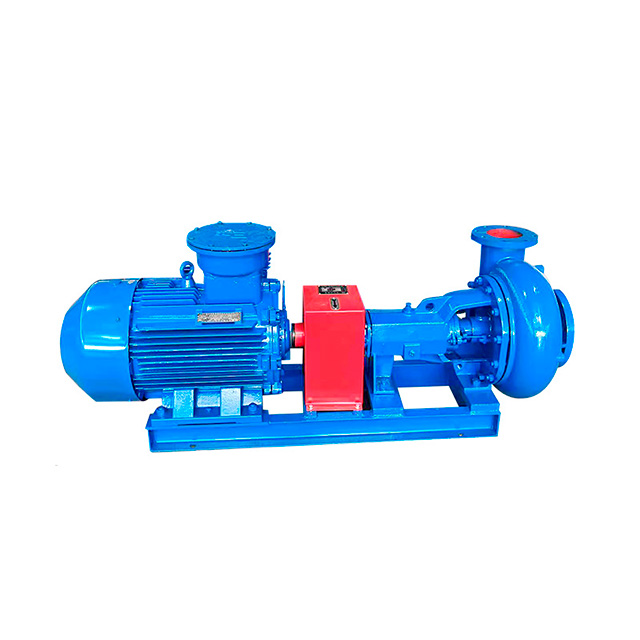

  • Mission Centrifugal Pump

    • Mission Centrifugal Pump
    • Mission Centrifugal Pump
    • Mission Centrifugal Pump
    • Mission Centrifugal Pump
    • Mission Centrifugal Pump

    Product Overview:

    HL HCP Mission pump design features:
    1. Large flow, fluid mechanics blade curve design.
    2. Flow-through parts are made of wear-resistant and corrosion-resistant materials.
    3. Mechanical seal and packing seal are used for double-stage sealing.
    4. Open impeller structure, can convey high-density and high-viscosity fluid media.
    5. External impeller adjustment structure, easy to adjust.
    6. 6 series, 24 specifications, suitable for different industries.
    7. Metric and imperial interfaces to meet different user needs.

    Mission Centrifugal Pump Details

    HL HCP sand pump are 100% interchangeable with Mission Magnum pump. The Mission pump are designed and manufactured for solids control equipment based on the characteristics of drilling fluids or industrial muds. They are suitable for conveying abrasive, viscous and corrosive fluid media. They are the best pump for desander, desilter, truck-mounted drilling rigs, metering tank, water tank or water cooling system, and mixing hopper. They are also ideal priming pumps for mud pump.

    HL HCP series Mission centrifugal pump have stable performance, high temperature resistance, large flow, easy maintenance and cost saving, and can provide the best customized options for the intended application according to the fluid conditions. They are currently widely used in land and offshore drilling platforms around the world, and are suitable for industry, construction, chemical industry, agriculture and other fields.


    HL HCP Mission Magnum Centrifugal Pump Product Type

    HL Petroleum offers a full range of Mission centrifugal sand pumps, suitable for various types of oil and gas drilling and industrial applications. HL HCP series Mission pump models include 3x2x13, 4x3x13, 5x4x14, 6x5x11, 6x5x14, 8x6x11, 8x6x14, 10x8x14, 12x10x23 to 14x12x22b. The power range of this series of sand pumps, bare pumps and matching motors supports from 7.5KW to 90KW, speeds of 800, 1000, 1150, 1450, 1750 to 3500 RPM, and frequencies of 50Hz or 60Hz.



    HL HCP series 10x8x14 and 8x6x14 centrifugal pumps are used in solids control systems of 3000m long drilling rigs for drilling fluids with high viscosity and high specific gravity. 8x6x11 centrifugal mud solids control feed pump is suitable for drilling rigs below 3000 meters, and can also be used as a grouting pump to supply slurry to a three-cylinder mud pump. 6x5x11 centrifugal pump is suitable for vehicle-mounted drilling rigs or pocket drilling rigs. 4x3x13 drilling centrifugal pump is usually used as a metering pump or feed pump. 3x2x13 mission pump is mainly used in conjunction with a water tank or water cooling system, also known as a clean water pump.

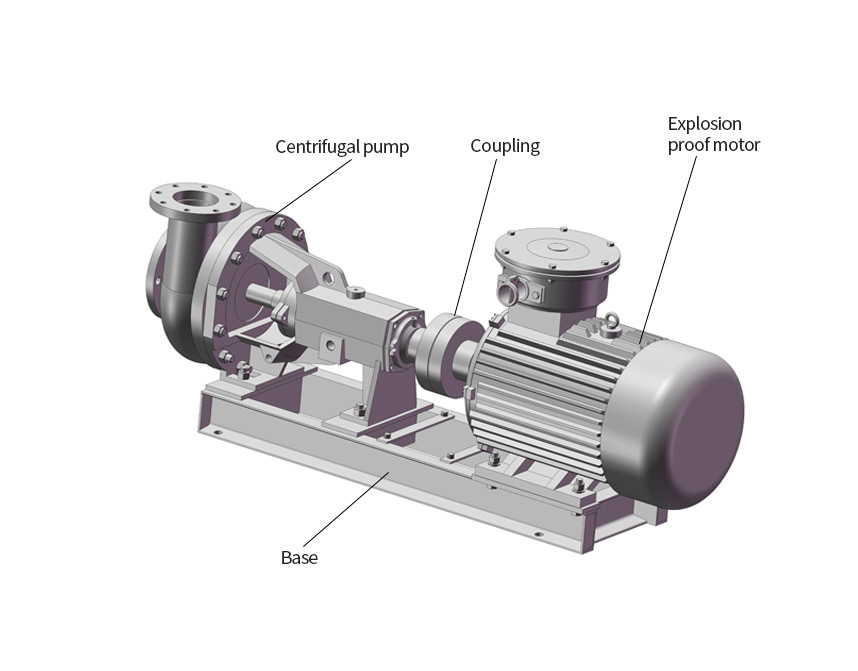

    HL HCP Mission Magnum Centrifugal Pump Structure Diagram

    HL HCP Series Mission Centrifugal Pump Dimensions Table

    model power A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    G
    mm
    H
    mm
    I
    mm
    J
    mm
    K
    mm
    HCP10×8×14 90Kw 2040 700 960 267 200 1200 600 650 450 810 1600
    HCP10×8×14 75Kw 1990 700 960 267 200 1100 600 650 450 810 1600
    HCP10×8×14 55Kw 1977 700 930 267 200 1100 600 650 450 810 1600
    HCP8×6×14 90Kw 2030 675 925 255 200 1200 600 650 450 805 1600
    HCP8×6×14 75Kw 1980 675 925 255 200 1100 600 650 450 805 1600
    HCP8×6×14 55Kw 1910 650 890 255 200 1100 550 600 420 775 1550
    HCP8×6×14 45Kw 1855 640 860 255 200 1100 535 585 395 750 1500
    HCP8×6×11 75Kw 1980 675 925 255 200 1100 600 650 450 805 1600
    HCP8×6×11 55Kw 1910 650 890 255 200 1100 550 600 420 775 1550
    HCP8×6×11 45Kw 1855 640 860 255 200 1100 535 585 400 750 1500
    HCP8×6×11 37Kw 1840 640 815 265 200 1100 535 585 400 750 1500
    HCP8×6×11 30Kw 1800 605 840 265 200 1100 470 520 400 755 1490
    HCP6×5×14 75Kw 1950 650 925 255 200 1100 600 650 450 730 1600
    HCP6×5×14 55Kw 1885 600 890 255 200 1100 550 600 420 700 1550
    HCP6×5×14 45Kw 1780 585 860 230 200 1100 535 585 400 675 1500
    HCP6×5×14 37Kw 1810 585 815 230 200 1100 535 585 400 675 1500
    HCP6×5×14 30Kw 1770 540 845 230 200 1100 470 520 400 680 1490
    HCP6×5×11 55Kw 1885 600 890 255 200 1100 550 600 420 700 1550
    HCP6×5×11 45Kw 1780 585 860 230 200 1100 535 585 395 675 1500
    HCP6×5×11 37Kw 1810 585 815 230 200 1100 535 585 400 675 1500
    HCP5×4×14 37Kw 1770 585 815 200 200 1100 535 585 400 675 1500
    HCP5×4×14 30Kw 1740 540 845 200 200 1100 470 520 400 680 1490
    HCP5×4×14 22Kw 1660 510 770 200 200 1100 438 490 400 680 1420
    HCP5×4×14 18.5Kw 1640 510 770 200 200 1100 438 490 400 680 1380
    HCP4×3×13 30Kw 1700 540 845 170 200 1100 470 520 400 660 1490
    HCP4×3×13 22Kw 1625 500 770 170 200 1100 470 520 400 660 1420
    HCP4×3×13 18.5Kw 1605 500 770 170 200 1100 438 490 400 660 1380
    HCP4×3×13 15Kw 1580 500 720 215 200 900 340 386 360 617 1290
    HCP3×2×13 15Kw 1565 500 720 200 200 900 340 386 357 617 1290
    HCP3×2×13 11Kw 1515 485 720 190 200 900 340 386 357 617 1245
    HCP3×2×13 7.5Kw 1425 485 650 190 200 900 340 386 330 590 1185
    HCP3×2×13 5.5Kw 1390 485 650 190 200 900 340 386 330 590 1185


    FAQ

    Q1: How can I make order online?

    A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.

    Q2: Do you have MOQ limit?

    A: The MOQ is 1 set.

    Q3: What's your warranties?

    A: 1 year after delivery

    Q4: Can I buy parts separately?

    A: Yes, all of the pump spare parts can buy separately.
