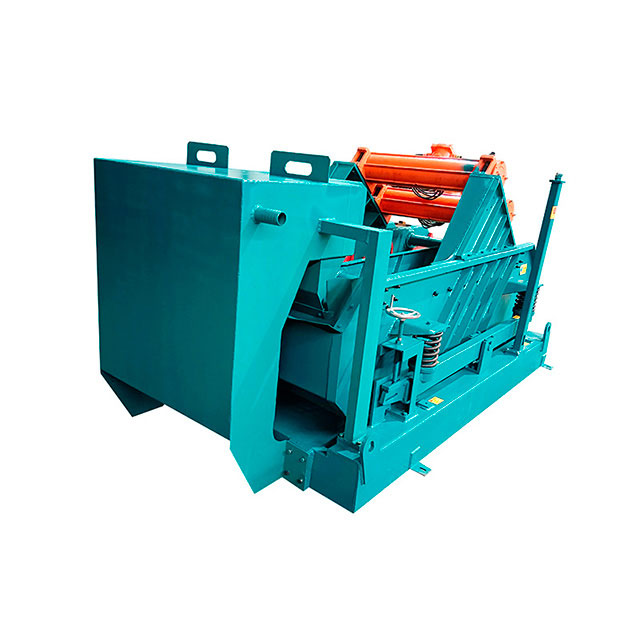

  • Dual-deck Shale Shaker

    • Dual-deck Shale Shaker
    • Dual-deck Shale Shaker
    • Dual-deck Shale Shaker

    Product Overview:

    The dual-deck mud shale shaker produced by HL petro equipment can be used for oil drilling, trenchless mud purification, river dredging, shield construction, coal washing plant sludge treatment, sewage treatment and other occasions. The HL petro can provide single-layer mud vibrating screens, double-layer mud vibrating screen, three-layer mud vibrating screen and other products according to customer needs.

    Dual-deck Shale Shaker Details

    The dual-deck mud shale shaker produced by HL petro equipment can be used for oil drilling, trenchless mud purification, river dredging, shield construction, coal washing plant sludge treatment, sewage treatment and other occasions. The HL petro can provide single-layer mud Shale Shaker, double-layer mud Shale Shaker, three-layer mud Shale Shaker and other products according to customer needs.

    Mud Shale Shaker Parameters

    Model

    HDZS6208

    HDZS6312

    Vibration Mode

    Linear Motion

    Linear Motion

    Capacity

    60L/S

    80L/S

    Screen Area

    5.2㎡

    8.1㎡

    Screen Qty & Size

    8×1165×585mm

    12×1165×585mm

    Motor Power

    2×2.5kW

    2×3.0kW

    Deck Angle Range

    -1°~5°

    -1°~7°

    Dimension: L×W×H

    3000×1800×1750mm

    3000×1800×2550mm

    Weight

    2500kg

    2800kg



    Dual-deck Shale Shaker Features

    1. The mud shale shaker has complete specifications, and can design and produce single-layer, double-layer, and three-layer drilling fluid shale shaker according to customer needs;

    2. Compared with products of the same type, the mud double-layer vibrating screen produced by HL solids control has the characteristics of large processing capacity, stable operation and long service life;

    3. Easy to operate and maintain, greatly reducing labor intensity

    4. Using ANSYS finite element analysis to continuously optimize the structure design;

    5. According to customer needs, it can be equipped with excitation motors of brands such as Ouli, Martin and Zallner;

    6. The electrical components adopt well-known brands.
