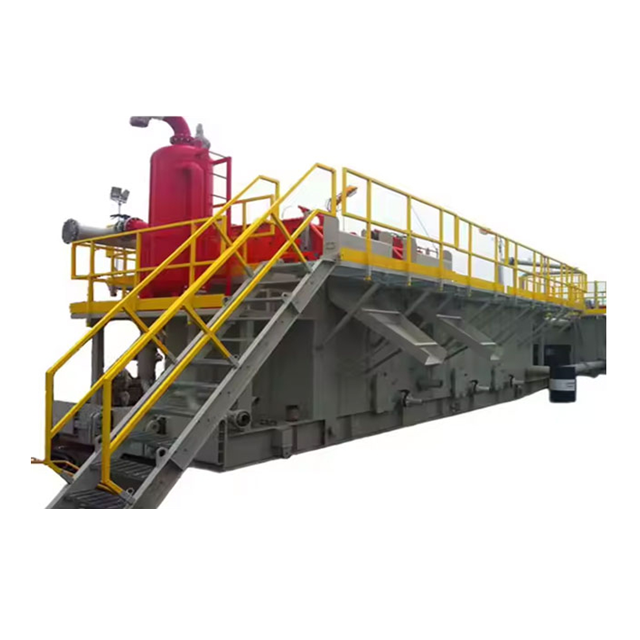

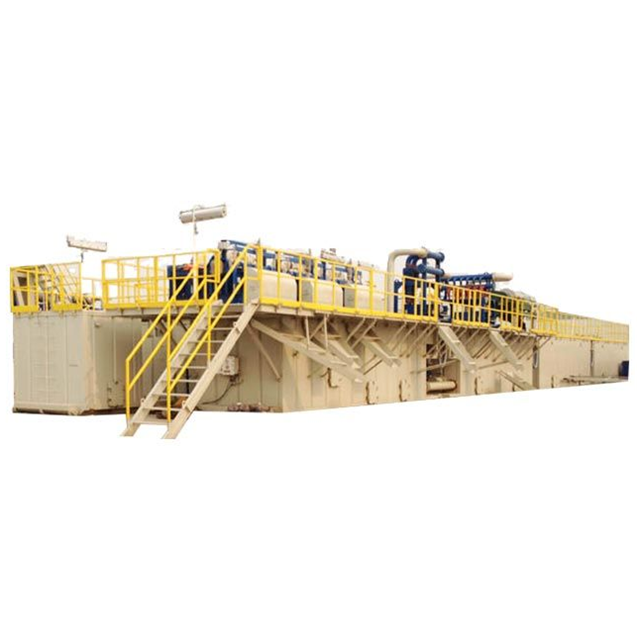

Mud System For ZJ70 Drilling Rig
Product Overview:
* Customized solution
* Reasonable design
* Reliable operation
* Modular design, easy installation and relocation
Mud System For ZJ70 Drilling Rig Details
HL Petroleum is specialized in oilfield drilling fluid solids control system. We independently design and produce a full set of solids control equipment and complete mud systems, including skid-mounted and vehicle-mounted solids control system. These systems are used on oil drilling rigs, work-over rigs, and natural gas drilling rigs. At present, we can produce supporting mud systems for ZJ10, ZJ20, ZJ30, ZJ40, ZJ50, ZJ70 and ZJ90 drilling rigs, which are suitable for 1000-9000 meters of oil drilling projects, and XJ550-XJ750 work-over rig vehicle-mounted mud solids control systems.
Here focuses on the mud system that HL Petroleum produces for the ZJ70 drilling rig. The ZJ70 rig is also known as 2000HP rig. The mud system for ZJ70 rig usually consists of shale shakers, mud cleaner, vacuum degasser, decanter centrifuges, Mud-gas separator, electronic ignition device, mud mixers, mud agitators, centrifugal sand pumps, mud tanks, water tanks, oil tanks and electronic control system. Different projects will have its own requirements on the processing capacity of the mud system, the size and quantities of mud handling equipment, etc. Please discuss with our technical engineer in detail for the specific plan, sales@hlshiyou.com

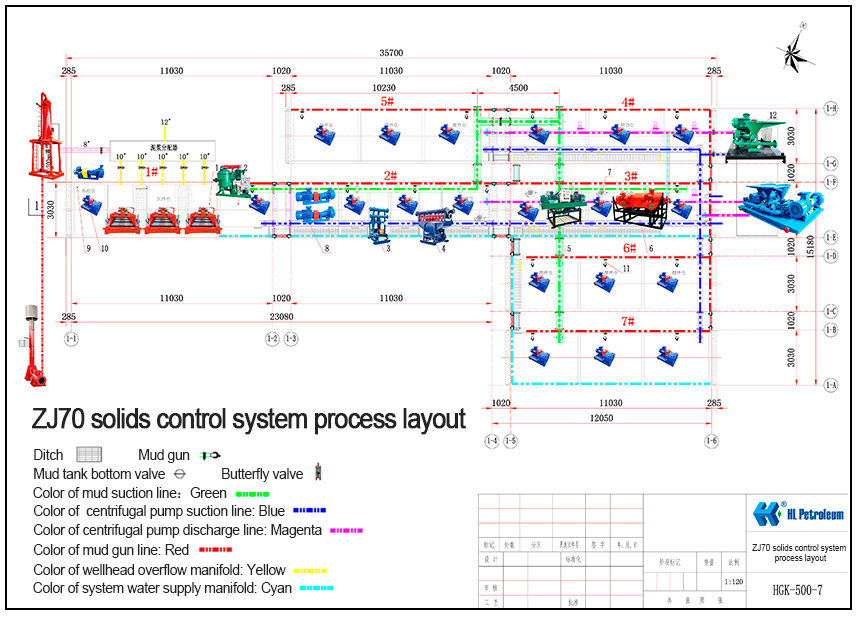

The Typical Layout Of ZJ70 Drilling Rig Solids Control System
The Main parameters of HL Petroleum mud systems for ZJ70 rig(for reference only)
|
No. |
Equipment |
Specification |
Quantity |
|
1 |
Mud tanks |
Volume ≥300m³/h |
1set |
|
2 |
Vibrating screen |
Capacity ≥ 181.5m³/h |
2units |
|
3 |
Desander |
Capacity ≥ 181.5m³/h |
1unit |
|
4 |
Desilter |
Capacity ≥ 181.5m³/h |
1unit |
|
5 |
Medium speed centrifuge |
Capacity ≥40m³/h, Separation particle size: 5~7μm |
1unit |
|
6 |
Mud Mixing device |
Capacity≥200m³/h,Lift 36m |
1unit |
|
7 |
Shear pumps |
Capacity ≥155m³/h,Lift 32m |
1unit |
|
8 |
Feeding centrifugal pump |
Capacity ≥150m³/h,Lift 28m |
1unit |
|
9 |
Degasser |
Capacity ≥ 181.5m³/h |
1unit |
|
10 |
High speed centrifuge |
Capacity ≥40m³/h, Separation particle size: 2~5μm |
1unit |
More about the HL Petroleum solids control systems for ZJ70 rig
|
The type of mud system |
Skid-mounted / vehicle-mounted / heat-insulated |
|
Application industry |
Oil drilling /coalbed methane drilling/natural gas drilling/shale gas drilling |
|
Mud handling equipment |
Shale shaker, degasser, desander desilter hydrocyclones, decanter centrifuges, mud tanks, mud guns, mud tank bottom valves, mud agitators, jet mud mixers, shear mixing unit, centrifugal mud pumps, medicine tank, guardhouse, Mud gas separator, water tanks, oil tanks, etc. |
|
The accessories of mud system |
Tank guardrails, stairs, aisles and floating platforms between tanks; mud backflow troughs, mud pump suction hoses, inverted tooth joints; level gauges, manifold systems, butterfly valves, hoses, unions, pipelines, connecting fasteners, etc |
|
Electronic control system |
General cables, explosion-proof lighting lamps, sealed safety connectors, explosion-proof plug-in boxes, explosion-proof magnetic starters, explosion-proof buttons, explosion-proof flexible pipes, button brackets, tank wall cable troughs,etc. |
|
System solution |
Equipment dimension, layout, pipeline, etc. designed according to your requirements |
Delivered Cases

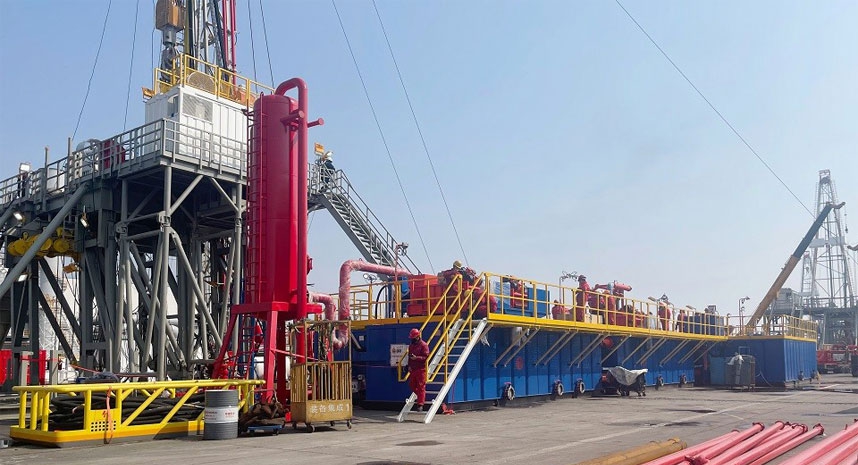

* a set of mud system of 2000HP rig for project in Pakistan, which was delivered in 2023.
The Features of HL Petroleum 2000HP drilling rig mud systems

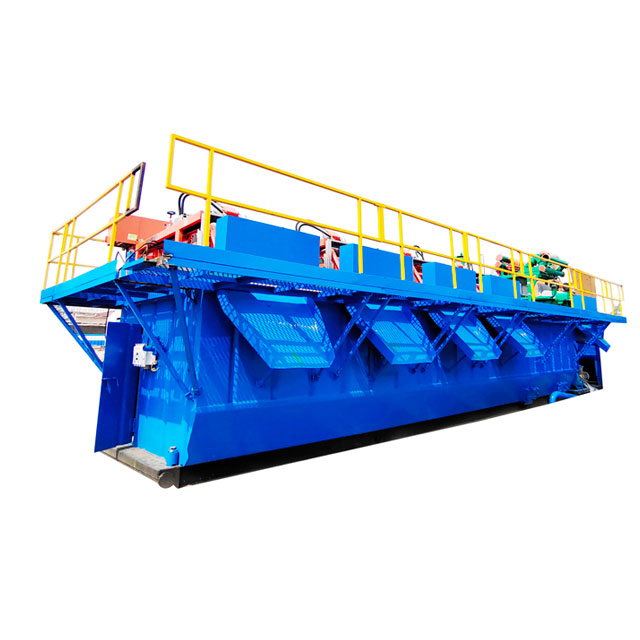

* The mud tank body usually adopts a skid-mounted corrugated structure, which is welded with steel plate and steel section. The materials meet the standard of the international oilfield industry. The tank side is 8mm steel plate (Q235), the tank bottom steel plate is 10mm (Q235), and the partition plate is 8mm (Q235). The base is welded with HM300*300*10*15 H steel (Q235) cross beams (four paths) and longitudinal beams. The tilted design of the tank bottom effectively prevents mud deposition and easy to clean.
* The layout of the solid control equipment is reasonable, reaching the five-level purification standard (shale shaker, degasser, desander, desilter, centrifuge). And mud mixing unit is designed to maximize the optimization of mud performance.
* The tank surface is made of galvanized steel grating and patterned cover, which is light, corrosion-resistant, and easy for workers to observe and operate.
* The tank body is connected with pneumatic union and fiberglass pipe, which is easy to install and reliable in sealing.
* The whole process can meet the needs of the equipment process flow, the pipeline layout is reasonable, and different units have the dual functions of complementary and independent work.
* The effective volume of mud tanks is 300m³ at least.
* The water supply system realizes automatic control, and each tank or compartment can meet the requirements of uniform water supply at the same time.
* Thorough anti-corrosion. Using advanced processes including sandblasting and rust removal, spraying marine special paint, etc., the surface strength of the tank body is enhanced, beautiful and durable.
