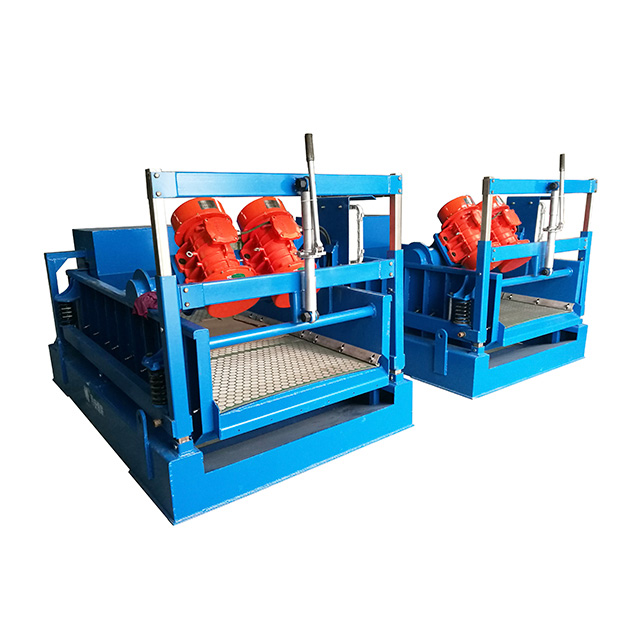

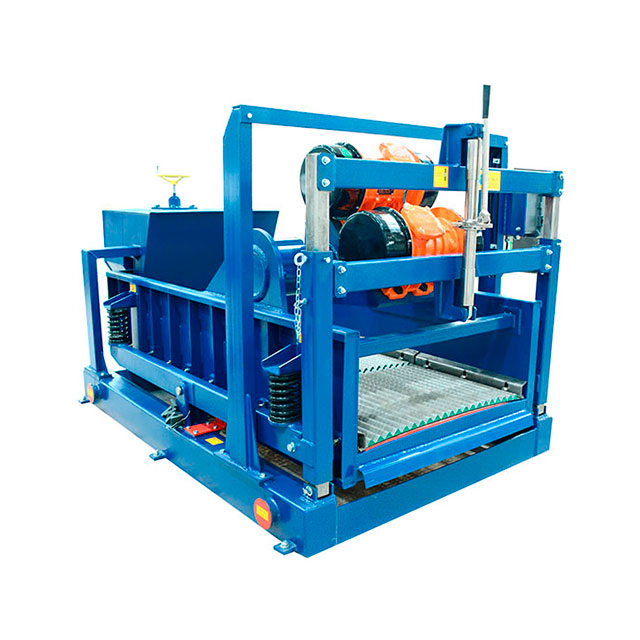

  • Linear Motion Shale Shaker

    • Linear Motion Shale Shaker

    Product Overview:

    The linear motion shale shaker is a high-level equipment for solid-liquid separation of drilling fluid, which is suitable for the drilling fluid solid control system of oil and gas drilling.
    1. Large filter area
    2. High efficiency due to linear vibration trajectory
    3. Any combination of double, triple, quadruple
    4. Stainless steel splash-proof cover, humanized design
    5. Frame type composite screen, strong and durable
    6. Screen box inclination adjustment device to prevent pulp running

    Linear Motion Shale Shaker Details

    The linear motion shale shaker uses two vibrating motors of equal mass and diameter product, relying on the principle of self-synchronization to realize the linear movement of the screen box along a certain direction, so as to achieve the purpose of screening and discharging cuttings particles in the drilling fluid.

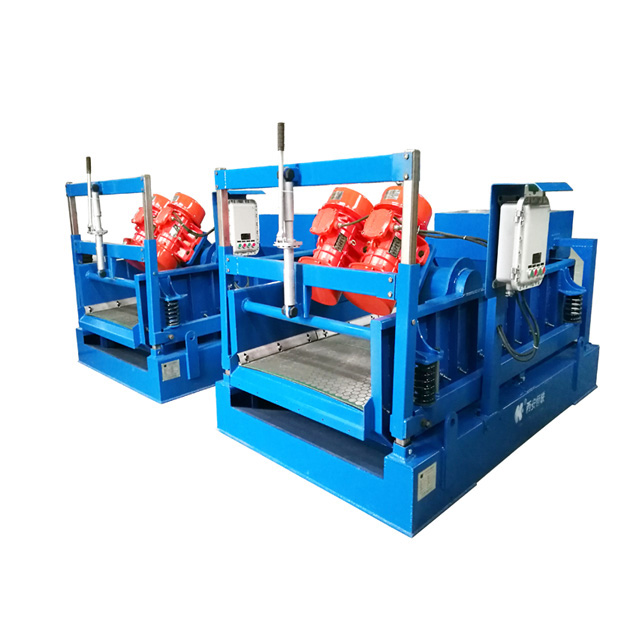

    Linear Motion Shale Shaker


    Linear Motion Shale Shaker Components
    1. Base assembly: Provides the basic support for the linear motion shale shaker to ensure the stable operation of the entire device.

    2. Screen box assembly: The screen box is the area where the drilling fluid is placed. The solid-liquid separation in the drilling fluid is achieved through vibration, and solid particles such as cuttings are screened out of the drilling fluid.

    3. Screen box inclination adjustment device assembly: used to adjust the inclination angle of the screen box to help optimize the screening effect and processing capacity.

    4. Anti-splash device assembly: The anti-splash device is used to ensure that no mud splash occurs during the operation of the equipment and to ensure the safety of operators.

    5. Mud box assembly: used to collect solid particles discharged from the screen box for easy processing and subsequent recycling.

    6. Electrical control system assembly: responsible for controlling the start and stop, vibration frequency and other operating parameters of the linear motion shale shaker to realize automatic control.

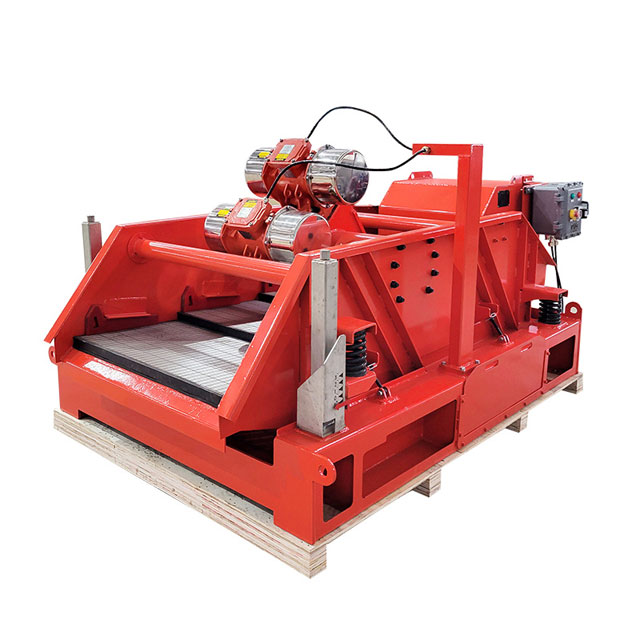

    Linear Motion Shale Shaker

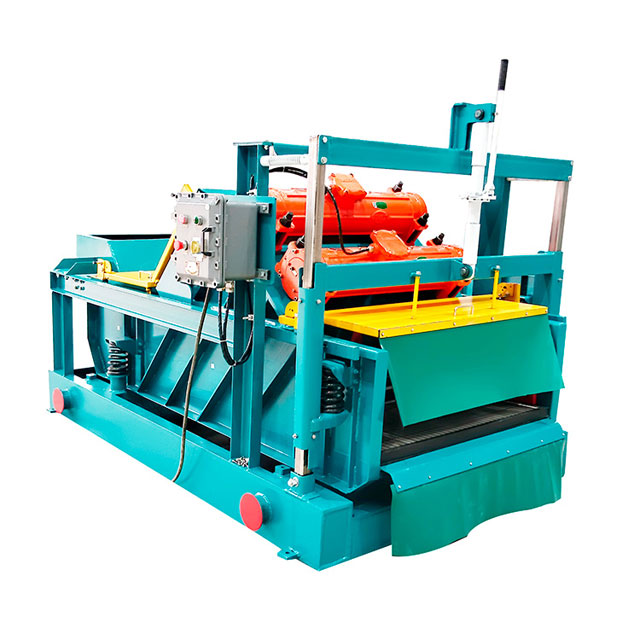

    Shale Shaker
    Linear Motion Shale Shaker Parameters
    Model HZS703 HZS803 HZS604 HZS605
    Vibration Motion Linear Linear Linear Linear
    Capacity 30L/S 35L/S 40L/S 45L/S
    Screen Area 2.2㎡ 2.7㎡ 2.7㎡ 3.4㎡
    Screen Specifications 3×1050×700mm 3×1080×830mm 4×1165×585mm 5×1165×585mm
    Motor Power 2×1.5kW 2×1.8kW 2×2.2kW 2×2.5kW
    Deck Angle Range -1°~3° -1°~3° -1°~3° -1°~3°
    Dimensions 2850×1590×1550 3150×1800×1630 2650×1700×1750 2850×1750×1650
    Weight 1680kg 1800kg 1950kg 2350kg
    The processing capacity of linear motion shale shaker is a key parameter, which is used to indicate the amount of material passing through the screen surface per unit time, usually measured in tons/hour. The actual processing capacity is affected by many factors, including the selection of motion parameters of the linear motion shale shaker itself, and factors such as drilling fluid type, density, viscosity, size and content of solid particles, and hole network size. The motion parameter of the linear motion shale shaker is one of the key factors affecting the processing power. These parameters include vibration frequency, vibration amplitude and inclination angle, etc. By choosing these parameters reasonably, the screening effect can be optimized and the processing capacity can be improved, so as to achieve higher production efficiency and operation effect.
