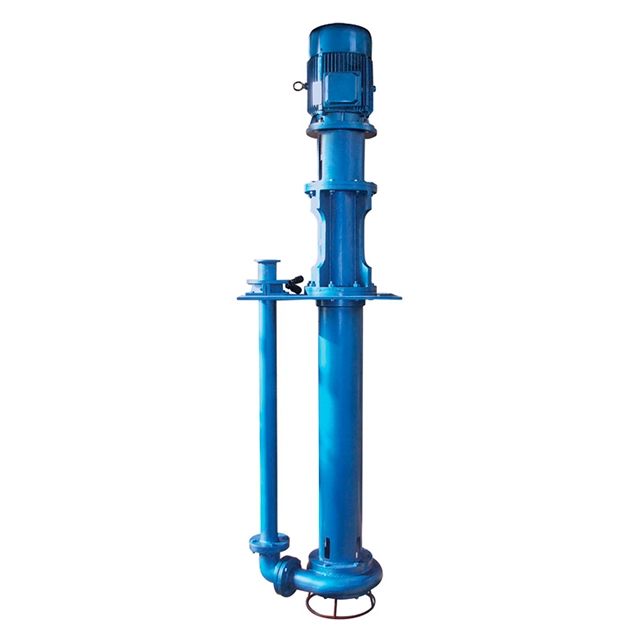

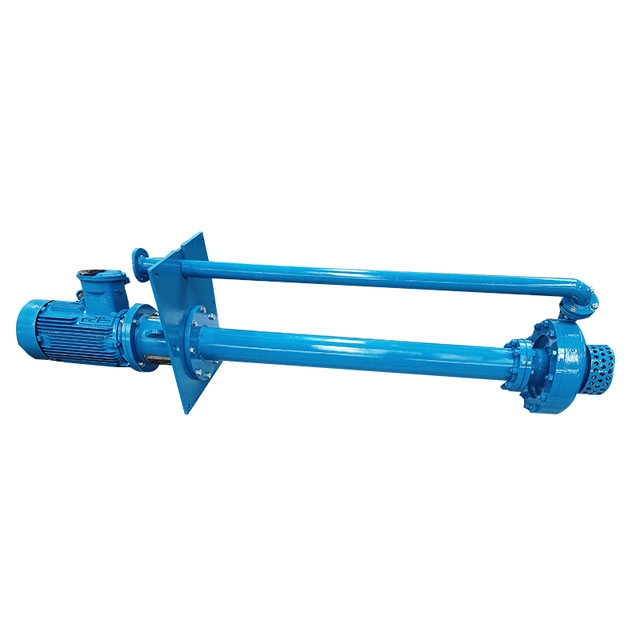

Vertical Slurry Pump

Product details

Vertical slurry pump (submersible slurry pump) is a drilling fluid transfer pump developed for special installation requirements. It is suitable for conveying corrosive drilling fluid with suspended particles or other liquid media in similar working conditions. It is mainly used in special occasions such as limited installation area and centrifuge feeding. Currently there are four series: LSB150, LSB100, LSB80, and LSB50. It can also be applied to the needs of 50HZ and 60HZ power grids. The LSB series vertical sand pump has a vertical structure and is an important part of the drilling fluid solid phase control system. Its characteristics are that the working body is placed under the tank, and the motor part is placed on the tank surface, and the space occupied is only the position of the motor. Therefore, the pump has the characteristics of compact structure and small footprint. >>Send an Enquiry sales@hlsolidscontrol.com<<

Technical Parameters of Vertical Slurry Pump >>Send an Enquiry sales@hlsolidscontrol.com<<

Model	Capacity (m3/h)	Head (m)	Efficiency (%)	Speed (rpm)	Motor model	Motor power (kw)
LSB150-55	250	40	51	1480	YB3-250M-4	55
LSB150-45	225	32	50	1480	YB3-225M-4	45
LSB150-37	200	25	49	1480	YB3-250S-4	37
LSB100-30	150	33	51	1480	YB3-200L-4	30
LSB100-22	120	28	56	1470	YB3-180L-4	22
LSB100-15	100	20	53	1460	YB3-160L-4	15
LSB80-11	80	21	53	1460	YB3-160M-4	11
LSB50-7.5	60	18	48	1440	YB3-132M-4	7.5
LSB50-5.5	40	22	44	1440	YB3-132S-4	5.5
