Mud Mixing System

Product details

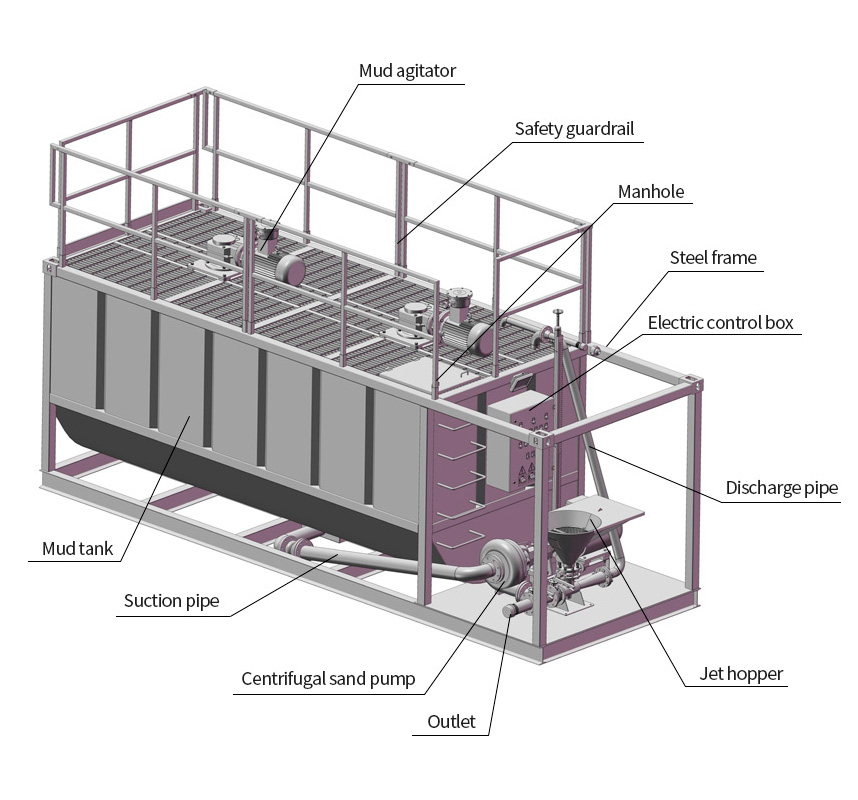

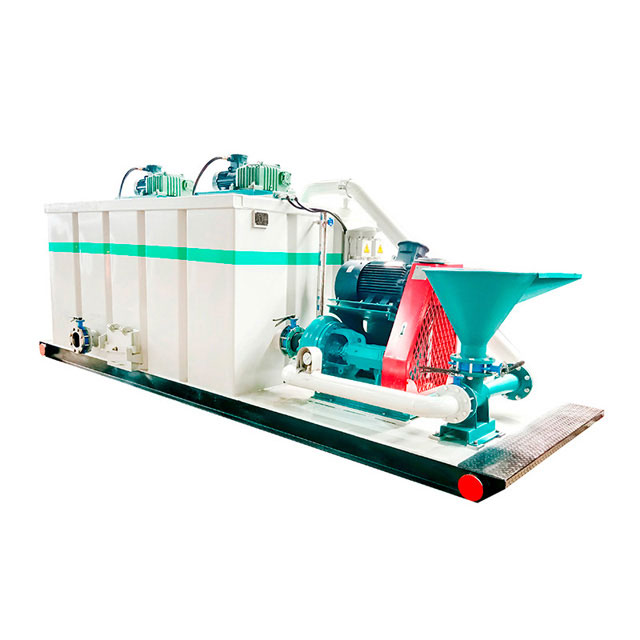

The mud mixing system designed and manufactured by HL Petroleum is used in many drilling fluid related projects, including geothermal drilling, oil and gas field drilling and work over projects, trenchless hdd projects, road construction, etc. The drilling fluid mixing system is usually composed of four modules: jet mixing device, mud mixing tank, electrical control system and lighting system. HL Petroleum carefully designs and strictly tests each module to ensure that it can operate stably and reliably in complex and changing application environments.

During the drilling process, mud mixing and reuse are key links to ensure drilling efficiency and safety. The mixing device and mud mixing tank can quickly and evenly mix the mud, and effectively adjust the mud viscosity and ratio to meet clients' needs for drilling technology, improve drilling efficiency and engineering quality. The configuration of explosion-proof electrical control system and lighting system can provide a safe and comfortable working environment for on-site operators.

Technical Data>>Send an Enquiry sales@hlshiyou.com<<

Model	HHX-20	HHX-50	HHX-100	HHX-200	HHX-500
Mixing Capacity	80m³/h	120m³/h	200m³/h	400m³/h	720m³/h
Tank Volume	20m³	50m³	100m³	200m³	500m³
Agitator Power	7.5KW×2	15KW×3	15KW×6	15KW×12	15KW×30
Jet Mixer Power	15KW	37KW	55KW	55KW×2	75KW×3

Customized service

HL Petroleum professionally customizes the mud mixing system according to the specific needs of your projects. The design will fully consider the local geological conditions and construction environment, and use materials and processes suitable for local needs to ensure the stability and durability of the system. Meanwhile, we provide comprehensive technical support and after-sales service to ensure that you can get timely and effective help and support during use.

The mud mixing system provided by HL Petroleum,

* Meets the relevant requirements of your country for this industry.

* Reasonable design and reliable performance. We listen carefully to your requirements and design the tank structure and lifting device according to the needs to facilitate transportation and movement; according to the working conditions, we equip the insulation shed and insulation pipelines, so that the mixing system can mix the slurry evenly and fully in a low temperature environment.

* Anti-corrosion and durable. Mainly reflected in the production process: high-quality steel is selected,sandblasting and rust removal treatment is carried out, and high-efficiency anti-corrosion paint is sprayed.

* One-stop procurement. All functional units and related accessories required for the mud mixing system can be directly supplied by us.

As a professional manufacturer of drilling fluid mixing systems, HL Petroleum has been committed to providing high-quality and efficient system solutions to global clients.Here are some delivered cases of HL Petroleum mud mixing system,>>Send an Enquiry sales@hlshiyou.com<<

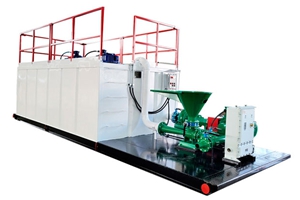

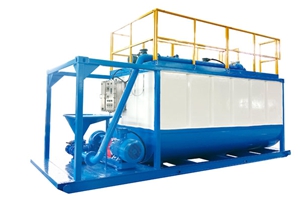

	Delivered on 2024,Nov. Jet mud mixing system with 10m³ mud tank, for trenchless hdd project.

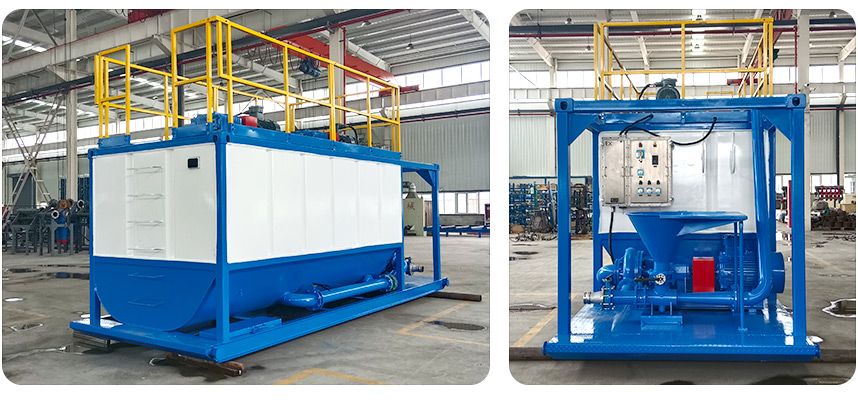

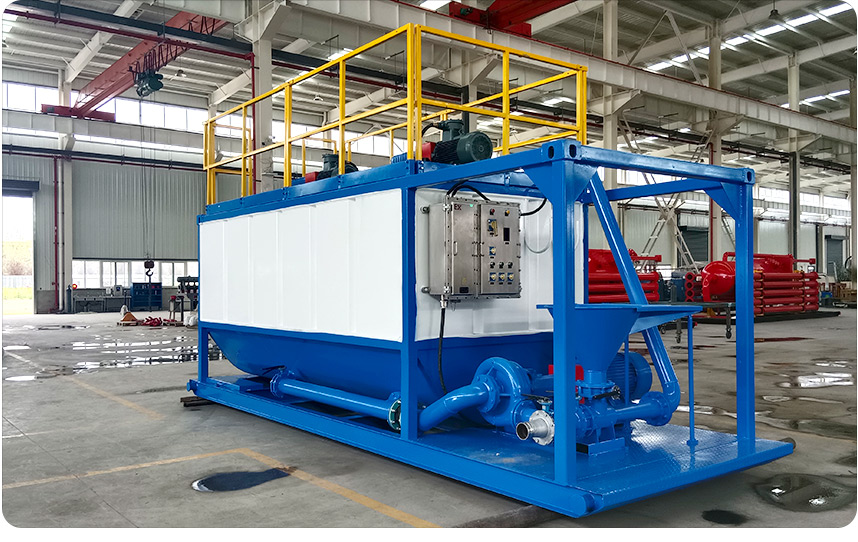

Delivered on 2024,Apr. Electric-driven mud mixing system with 18m³ mud tank, For oil offshore well cementing project.

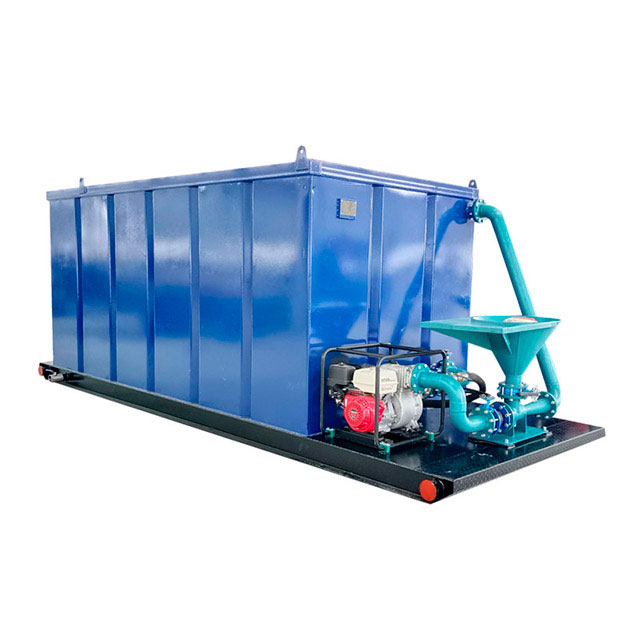

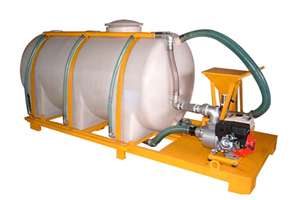

	Delivered on 2023,Oct. Small Gasoline engine mud mixing system with 3m³ mud tank, for municipal engineering project.

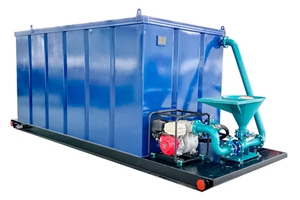

Delivered on 2023,Apr. Gasoline engine mud mixing system with 15m³ mud tank,for HDD project.
