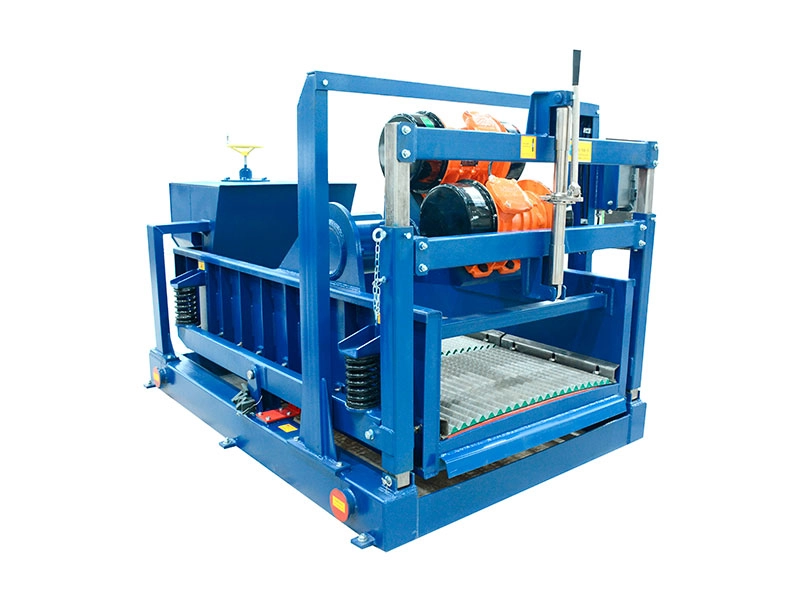

Mud Shale Shaker FLC2000

Product details

Overview of linear motion shale shaker

Drilling fluid shale shaker FLC2000 is a first-stage equipment for solid-liquid separation of drilling fluid. It is suitable for the drilling fluid solid control system of oil and gas drilling. Linear movement along a certain direction achieves the purpose of screening and discharging cuttings particles in drilling fluid. >>Send an Enquiry sales@hlsolidscontrol.com<<

Features of linear shale shaker

1. High efficiency of linear vibration trajectory.

2. Any combination of double, triple and quadruple.

3. The angle of the screen box can be adjusted to prevent the slurry from running out.

4. Hook edge plate screen, economical and affordable.

5. Screen box inclination adjustment device to prevent pulp running.

Technical parameters of linear motion shale shaker >>Send an Enquiry sales@hlsolidscontrol.com<<

Model	HZS703	HZS803	HZS604	HZS605
Vibration Mode	Linear Motion	Linear Motion	Linear Motion	Linear Motion
Capacity	30L/S	35L/S	40L/S	45L/S
Screen Area	2.2㎡	2.7㎡	2.7㎡	3.4㎡
Screen Qty & Size	3×1050×700mm	3×1080×830mm	4×1165×585mm	5×1165×585mm
Motor Power	2×1.5kW	2×1.8kW	2×2.2kW	2×2.5kW
Deck Angle Range	-1°～3°	-1°～3°	-1°～3°	-1°～3°
Dimension: L×W×H	2850×1590×1550	3150×1800×1630	2650×1700×1750	2850×1750×1650mm
Weight	1680kg	1800kg	1950kg	2350kg

What are the commonly used mesh sizes of shale shaker in drilling?

The commonly used mesh sizes (the number of holes per inch) are 12 mesh, 16 mesh, 20 mesh, 40 mesh, 60 mesh and 80 mesh, and the densest mesh used on site is 200 mesh. The mesh size of the shale shaker used in drilling rig can be reasonably selected according to the on-site drilling needs, and the screen should be tightened and replaced in time.

HL Petroleum is a professional drilling fluid shale shaker suppliers.

BOOKING TIST PRODUCT ONLINE

E-mail: sales@hlsolidscontrol.com

Why choose us?

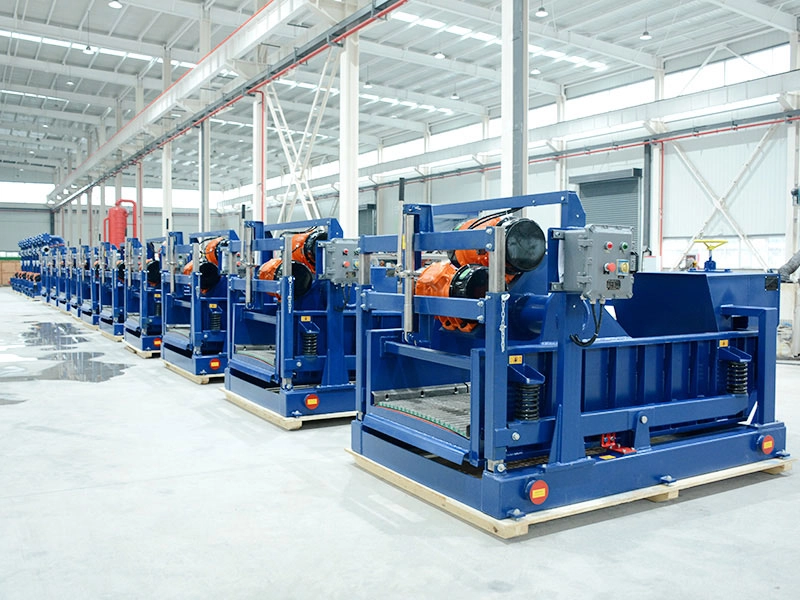

factory
