Oilfield domestic water tank completed and shipped

Hello everyone! Today I’d like to introduce our 30m³ Domestic Water Tank.This water tank is mainly used to supply domestic water to the living quarters at oilfield drilling sites, meeting the needs of construction personnel for drinking, bathing and other daily water usage.

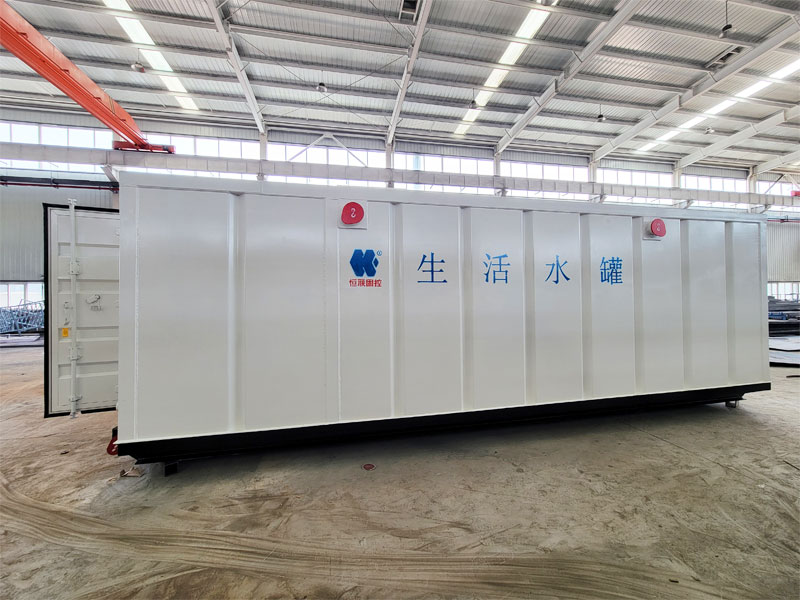

The unit consists of two parts: a water storage tank and a pump compartment.The effective volume of the storage tank is 30 cubic meters. The tank bottom is made of 8mm steel plate, side plates of 6mm corrugated steel plate, and top plate of 5mm non-slip steel plate, featuring high structural strength and suitability for frequent transportation on well sites. The inner tank is coated with an environmentally friendly tank-grade coating to ensure clean water quality.

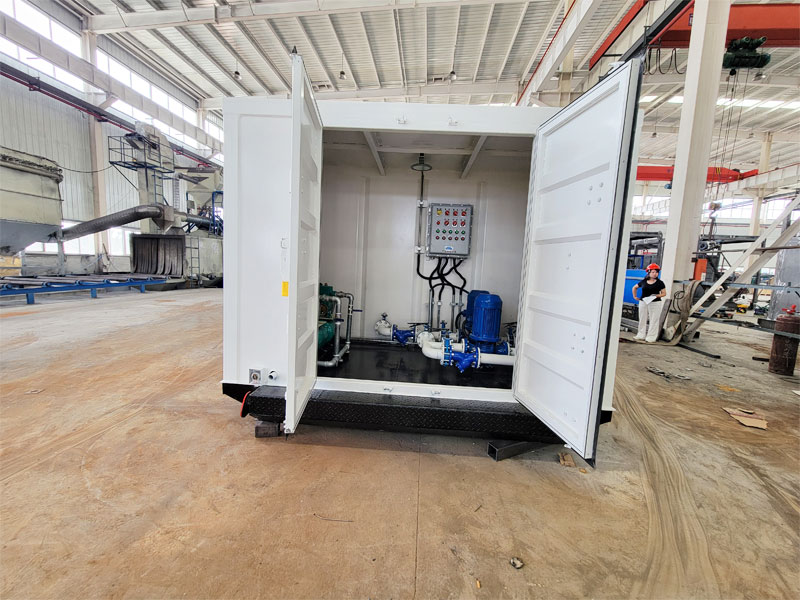

The pump compartment is equipped with two 5.5kW pipeline centrifugal pumps, each with a maximum water delivery capacity of80m³ per hour. We use a one-duty one-standby dual-pump design with interconnected pipelines, eliminating the risk of water outage caused by pump failure.This pump set has three main functions:

1.Pump water from external tank trucks into the water tank;

2.Deliver water from the tank to the living quarters;

3.Supply external water sources directly to the camp area.

In addition, the system is fitted with two booster pumps to ensure stable water pressure for bathing in the living quarters.A filter is installed at the pump suction inlet to effectively filter impurities from incoming water.

The electrical system adopts a full explosion-proof design, with explosion-proof rating Ex BT4 and protection grade IP55.Cables are laid in steel pipes for a neat, reasonable and professional layout. All control panels are welded steel structures, solid and durable.The pump compartment is equipped with explosion-proof LED lights and a magnetic flap level gauge, which are durable and reliable.

That’s all for today’s introduction. If you would like to know more details, welcome to send inquiry to us: sales@hlsolidscontrol.com
