In oil and gas drilling operations, the shale shaker screen plays a critical role in the solids control system. The performance of the screen directly affects drilling fluid recovery, solids separation efficiency, screen life, and overall drilling costs.

Among the many screen types available in the market, hook strip screens and pyramid screens are two of the most commonly used shale shaker screens. Although both are designed to separate drilling cuttings from drilling fluid, they differ significantly in structure, screen area, performance, and application.

This article explains the key differences between hook strip screens and pyramid screens, including their design, advantages, disadvantages, applications, and how to choose the right screen for your drilling project.

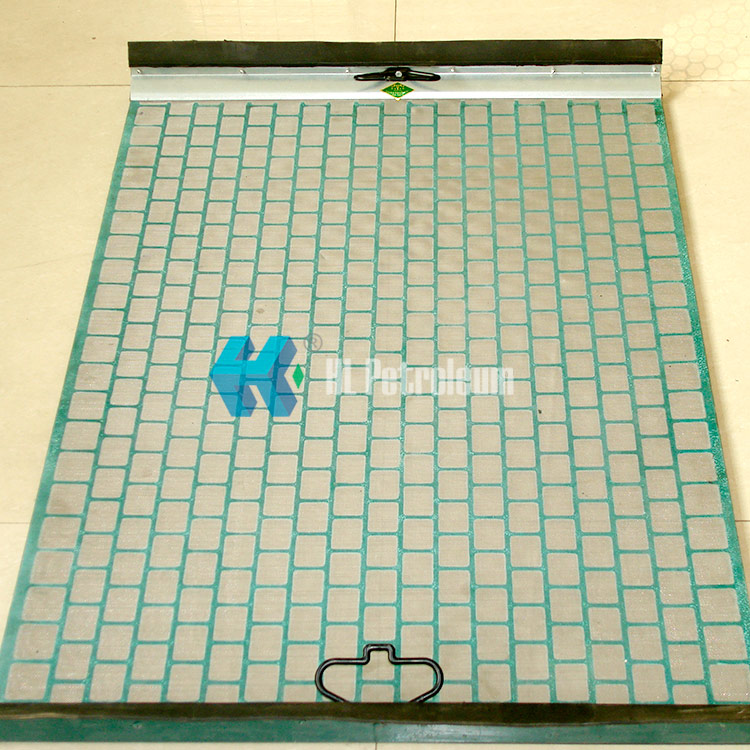

What Is a Hook Strip Screen?

A hook strip screen is a traditional flat shale shaker screen with metal hook strips attached to both sides. These hook strips allow the screen to be tensioned and fixed onto the shaker deck.

Hook strip screens are widely used in conventional shale shakers and have been an industry standard for many years.

Structure of Hook Strip Screens

Hook strip screens typically consist of:

• Stainless steel wire mesh layers
• Supporting metal backing plate or support mesh
• Metal hook strips on both sides

The screen is stretched tightly across the shaker deck during installation.

Features of Hook Strip Screens

Flat Screen Surface

The screen surface is flat, providing stable solids transport and simple operation.

Lower Manufacturing Cost

Hook strip screens are generally more economical than advanced screen designs.

Wide Compatibility

They are compatible with many traditional shale shakers and older drilling rigs.

Simple Replacement

Installation and replacement are relatively straightforward.

Advantages of Hook Strip Screens

Cost-Effective

Hook strip screens are usually cheaper than pyramid screens, making them attractive for projects with tight budgets.

Easy to Install

The tensioning system is simple and familiar to most drilling crews.

Stable Solids Conveying

The flat surface allows smooth transportation of drilling cuttings across the shaker deck.

Suitable for Conventional Drilling

They perform well in standard drilling conditions with moderate flow rates.

Disadvantages of Hook Strip Screens

Despite their simplicity, hook strip screens also have limitations.

Smaller Non-Blanked Screen Area

Because the screen surface is flat, the effective usable screening area is relatively limited.

This reduces fluid handling capacity.

Lower Processing Capacity

Compared with pyramid screens, hook strip screens generally process less drilling fluid under the same conditions.

Shorter Screen Life in Some Applications

High vibration stress and limited support can lead to faster wear.

More Prone to Screen Blinding

Sticky solids may block the screen surface more easily.

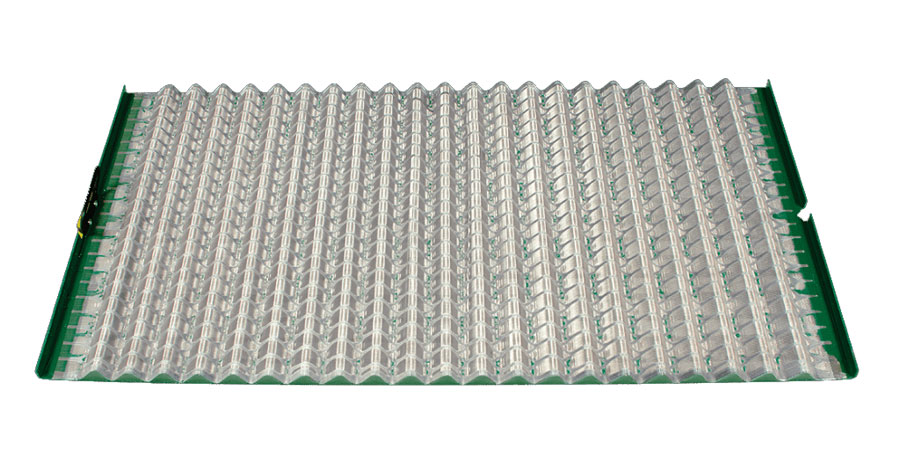

What Is a Pyramid Screen?

A pyramid screen, also called a corrugated screen, features a three-dimensional corrugated surface rather than a flat design.

The raised pyramid or wave-shaped structure significantly increases the usable screen area.

Pyramid screens are commonly used in modern high-performance shale shakers.

Structure of Pyramid Screens

Pyramid screens typically include:

• Multi-layer stainless steel wire mesh
• Corrugated or pyramid-shaped support structure
• Composite or steel frame
• Reinforced bonding technology

The corrugated design creates additional screening area compared with flat screens.

Features of Pyramid Screens

Larger Effective Screen Area

The corrugated structure increases the non-blanked area by 20%–40% compared with flat hook strip screens.

Higher Fluid Throughput

More screen area allows higher drilling fluid processing capacity.

Improved Separation Efficiency

The additional screen surface improves fine solids separation performance.

Better Screen Utilization

Drilling fluid distributes more evenly across the screen surface.

Advantages of Pyramid Screens

Higher Processing Capacity

Pyramid screens can handle larger drilling fluid volumes without screen flooding.

This makes them ideal for:

• Deep drilling
• Horizontal drilling
• High-flow drilling systems

Improved Fine Solids Separation

The larger screening area improves solids removal efficiency while maintaining fluid throughput.

Longer Screen Life

Reduced fluid loading per unit area can extend screen service life.

Better Performance with Fine Mesh Screens

Pyramid screens perform especially well with API fine screens.

Reduced Mud Loss

Improved separation efficiency helps recover more drilling fluid.

Disadvantages of Pyramid Screens

Despite their advantages, pyramid screens also have some drawbacks.

Higher Cost

Pyramid screens are more expensive than standard hook strip screens.

Compatibility Limitations

Not all shale shakers are designed for pyramid screens.

More Complex Manufacturing

Advanced bonding and corrugated structures increase production complexity.

Potential Cleaning Difficulty

In some drilling conditions, solids may accumulate in corrugated areas.

Hook Strip Screen vs Pyramid Screen: Key Differences

Which Screen Is Better?

The best screen depends on your drilling conditions, budget, and solids control requirements.

Choose Hook Strip Screens If:

You need:

• Lower operating costs
• Simple installation
• Standard drilling performance
• Compatibility with older shale shakers

Hook strip screens remain suitable for many conventional drilling projects.

Choose Pyramid Screens If:

You need:

• Higher processing capacity
• Better fine solids separation
• Reduced drilling fluid loss
• Improved screen life
• High-performance drilling efficiency

Pyramid screens are preferred for modern demanding drilling operations.

Applications of Hook Strip and Pyramid Screens

Both screen types are widely used in:

• Oil & gas drilling
• HDD drilling
• CBM drilling
• Offshore drilling
• Geothermal drilling
• Mining slurry separation

However, pyramid screens are increasingly becoming the preferred choice for high-capacity solids control systems.

Factors to Consider When Selecting a Shale Shaker Screen

1. Drilling Fluid Type

High-viscosity mud may require screens with larger effective area.

2. Flow Rate

Large circulation systems benefit from pyramid screens.

3. Solids Content

Fine solids removal often favors advanced pyramid designs.

4. Operating Budget

Hook strip screens offer lower initial cost.

5. Screen Life Expectations

Longer-lasting screens may reduce overall operating expenses.

Why Screen Quality Matters

High-quality shaker screens can:

• Improve drilling efficiency
• Reduce mud loss
• Extend equipment life
• Lower waste disposal costs
• Improve solids control performance
• Reduce screen replacement frequency

In many drilling projects, screen performance directly affects overall rig operating costs.

Conclusion

The main difference between hook strip screens and pyramid screens lies in their screen structure and effective screening area.

• Hook strip screens feature a traditional flat design with lower cost and simple installation.
• Pyramid screens use a corrugated structure that provides larger screening area, higher processing capacity, and better fine solids separation.

For conventional drilling operations, hook strip screens remain a reliable and economical solution. However, for high-performance drilling systems requiring better fluid handling and improved solids control efficiency, pyramid screens are often the superior choice.

When selecting shale shaker screens, always consider your drilling conditions, fluid properties, flow rate, and overall solids control objectives to achieve the best operational performance.
