    Product Overview:

    Mud shearing pump is a kind of slurry preparation by adding polymer, bentonite and other raw materials to continuously and efficiently cyclically shear, refine, mix and change its molecular chain structure, eliminating "fish eyes" and making the mud meet the performance requirements of the process , meet the drilling fluid (mud) higher performance requirements.

    Mud Shear Pump Details

    Mud shear pump is a kind of slurry preparation by adding polymer, bentonite and other raw materials to continuously and efficiently cyclically shear, refine, mix and change its molecular chain structure, eliminating "fish eyes" and making the mud meet the performance requirements of the process , meet the drilling fluid (mud) higher performance requirements.
    Mud Shear Pump

    Mud Shear Pump Parameters

    Model

    Capacity

    (m3/h)

    Head

    (m)

    Speed

    (r/min)

    Efficiency

    (%)

    NPSH

    (m)

    Power(kW)

    Shaft power Motor power

    WJQ5×6J-75kW

    150

    30

    2150

    28

    3

    46

    75

    WJQ5×6J-55kW

    140

    26

    2050

    28

    3

    35

    55

    WJQ5×6J-45kW

    105

    24

    1750

    28

    2.8

    25

    45

    WJQ5×6J-37kW

    105

    24

    1750

    28

    2.8

    25

    37

    bentonite shear pump
    Mud Shear Pump Features

    1. Mud shear pump can improve the dispersion and hydration degree of soil particles in water, and save more than 30% of bentonite.

    2. Mud shear pump has high shear efficiency, which can dilute and hydrate the polymer faster.

    3. The mud shear pump has large displacement, high lift, good suction, and high efficiency; it can meet the requirements of new mud preparation and transportation.

    4. The slurry shear pump adopts mechanical seal design, which greatly extends the service life.

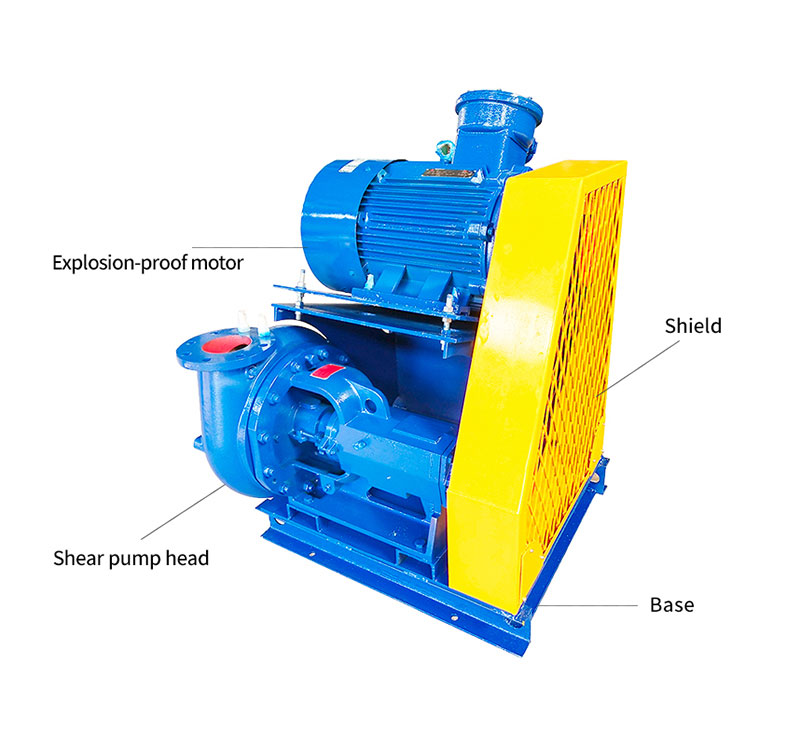

    5. The mud shear pump is installed on a special base and driven by a belt pulley, a narrow V-belt and an explosion-proof motor. It is used with the shear pump and there is a mixing funnel of suitable size to form a complete shear and hydration system.

    bentonite shear pump

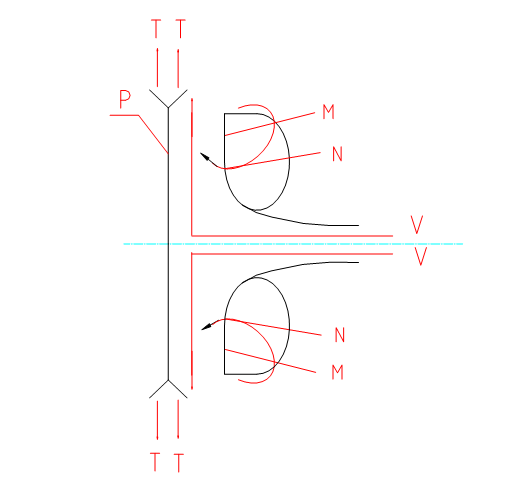

    Shear Pump Working Principle

    Shear Pump Working Principle

    Fluid enters at “V” and is pumped parallel to the shear “P”. The chambers scoops 50% of the volume being pumped and jets that fluid through 44 nozzles “N” and impacts the shear plate “P” at very high velocity at “M” 90 degrees to the fluid entering the pump. The total fluid “V” and “N” travels down the shear plate to “T” where the fluid is further sheared due to the shape and speed of the plate tip.

    FAQ

    Q1: How can I make order online?
    A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
    Q2: Do you have MOQ limit?
    A: The MOQ is 1 set.
    Q3: What's your warranties?
    A: 1 year after delivery
    Q4: Can I buy parts separately?
    A: Yes, all of the pump spare parts can buy separately.
