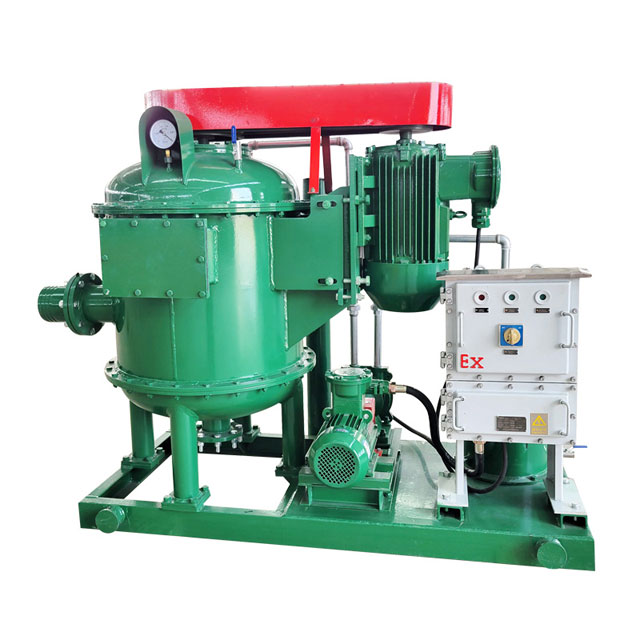

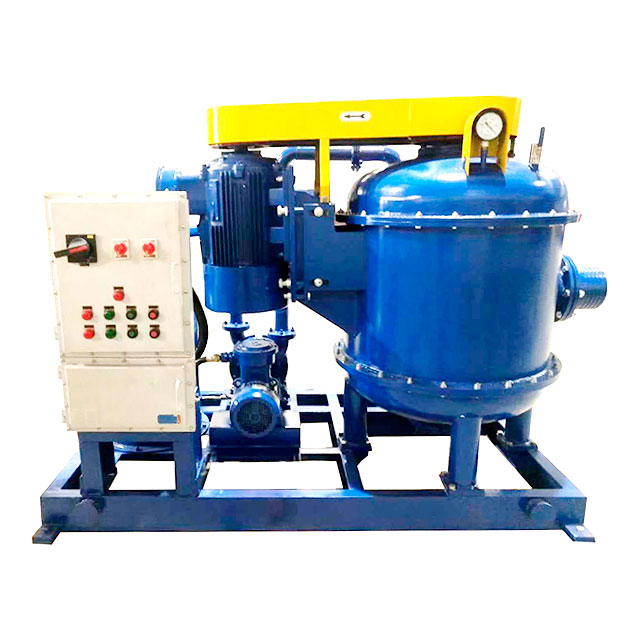

  • Drilling Fluid Degasser

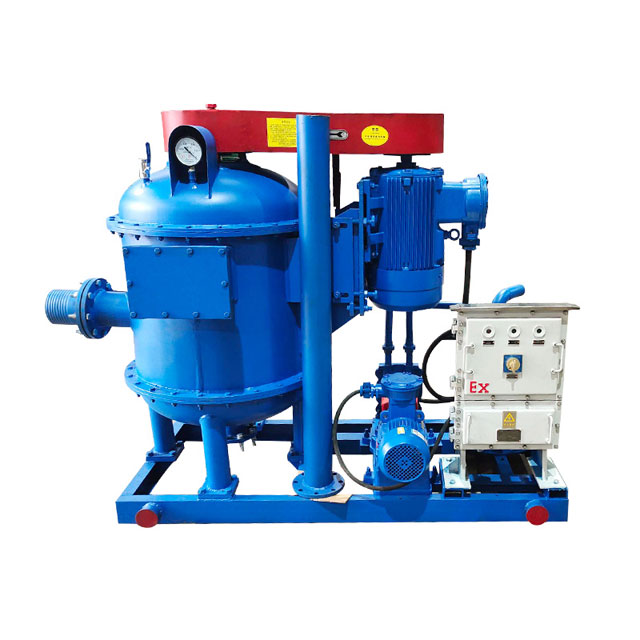

    • Drilling Fluid Degasser

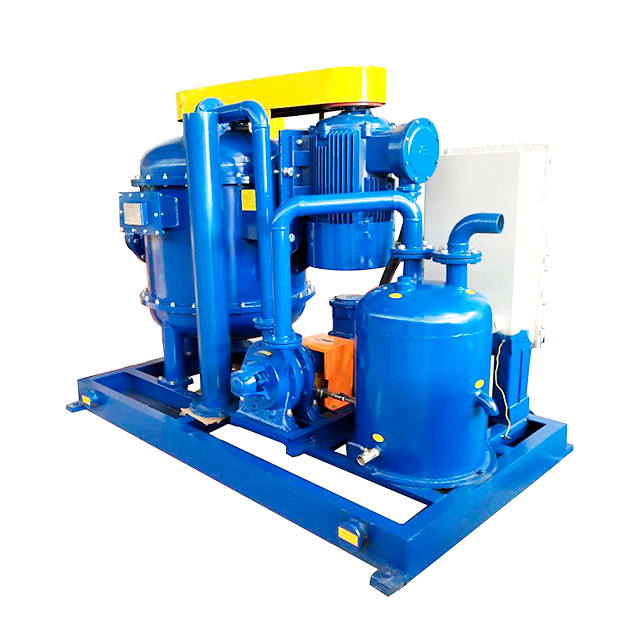

    • Drilling Fluid Degasser
    • Drilling Fluid Degasser

    Product Overview:

    Drilling fluid stability is critical to wellbore stability and drilling safety. The function of the drilling fluid degasser can prevent the accumulation of gas and the formation of foam, maintain the stability of the drilling fluid, and reduce the risk of well wall collapse and accidents.The drilling fluid degasser produced by HL includes vacuum degasser, jet degasser and centrifugal degasser.

    Drilling Fluid Degasser Details

    Drilling fluid degasser is one of the indispensable solid control equipment in the oil drilling process. Its main function is to separate the gas in the mud returned from the wellhead. The processing capacity and separation efficiency of the degasser are the main indicators to measure the performance of the equipment.

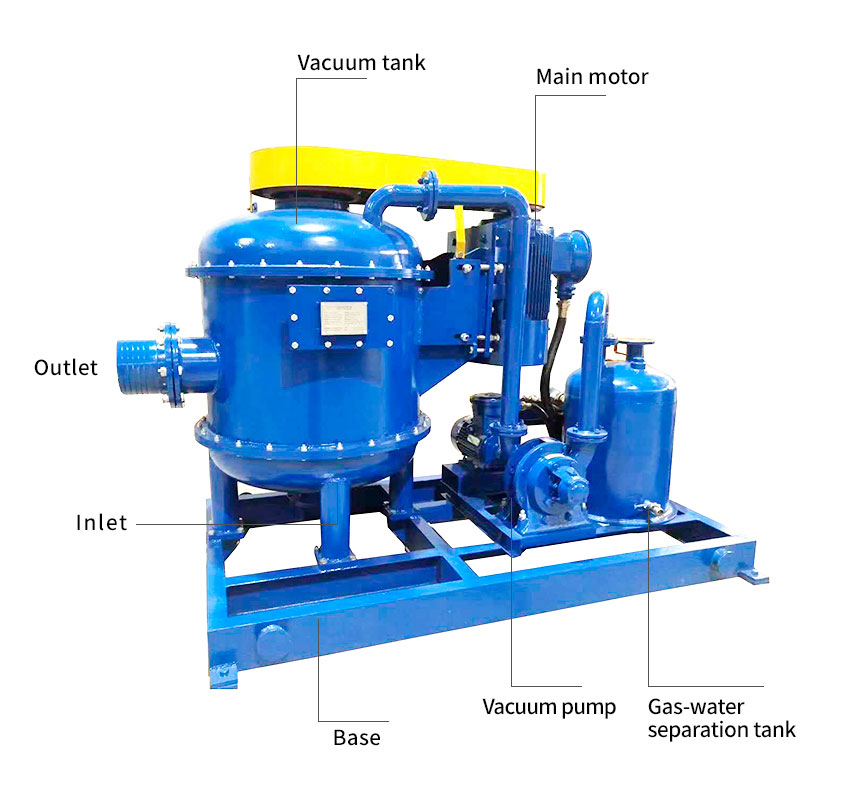

    Drilling degasser

    Drilling Fluid Degasser Parameters



    Model

    HCQ(N)240

    HCQ(N)270

    HCQ(N)300

    HCQ(N)360

    Handling capacity (m3/h)

    240

    270

    300

    360

    Vacuum ratio ( MPa)

    -0.030—0.045

    -0.030—0.050

    -0.030—0.055

    -0.040—0.065

    Drive ratio

    1.68

    1.68

    1.68

    1.72

    Master motor power(kW)

    15

    22

    30

    37

    Vacuum pump power(kW)

    2.2

    3

    4

    7.5

    Rotating rate(r/min)

    860

    870

    876

    880

    Gas displacement (m3/h)

    28

    48

    90

    180

    Applicable mud gravity (g/cm3)

    ≤2

    ≤2

    ≤2.5

    ≤2.5

    Degassing efficiency (%)

    ≥95

    ≥95

    ≥95

    ≥95

    Weight (kg)

    1100

    1350

    1650

    1800

    Overall dimension(mm)

    1750×860×1500

    2000×1000×1670

    2250×1330×1650

    2400×1500×1850

    The processing capacity and separation efficiency of the drilling fluid degasser are important indicators to measure the performance of the equipment. The processing capacity indicates the ability of the drilling fluid degasser to process mud, usually measured in flow or volume units. The separation efficiency refers to the ability of the degasser to separate the gas from the mud, generally expressed as a percentage. High throughput and high separation efficiency can ensure the efficient operation of the degasser, ensure the quality and performance of drilling fluid, and improve drilling efficiency and safety. Therefore, in the oil drilling process, it is very important to choose a drilling fluid degasser with appropriate performance.

    Drilling Fluid Degasser Pictures

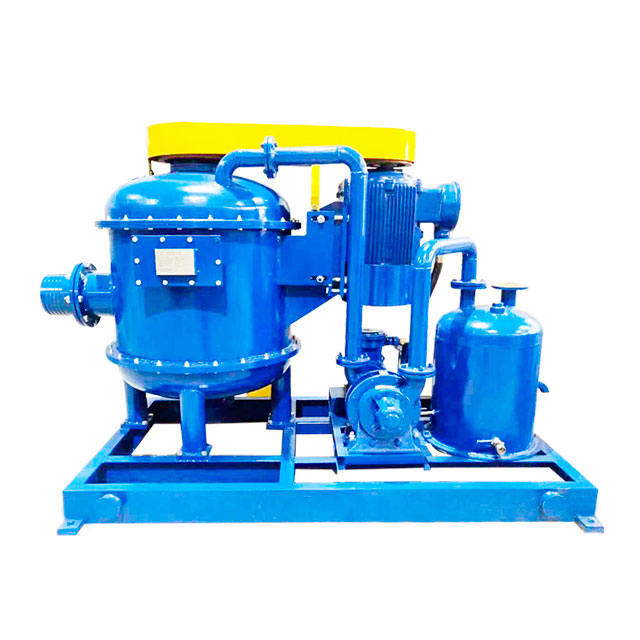

    Drilling Fluid Degasser

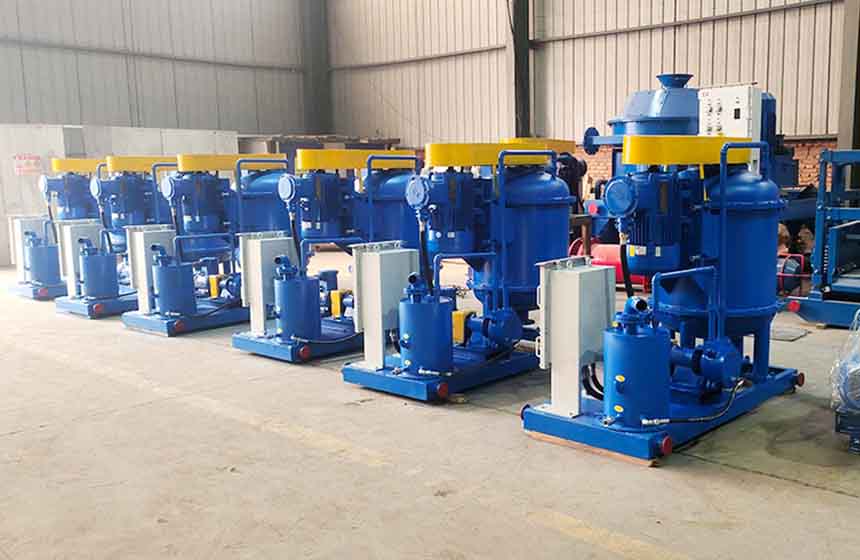

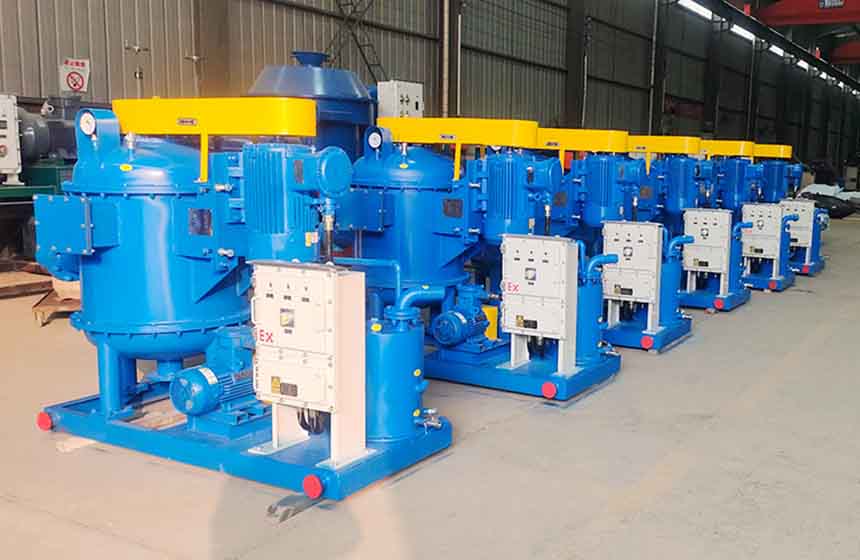

    mud degasser

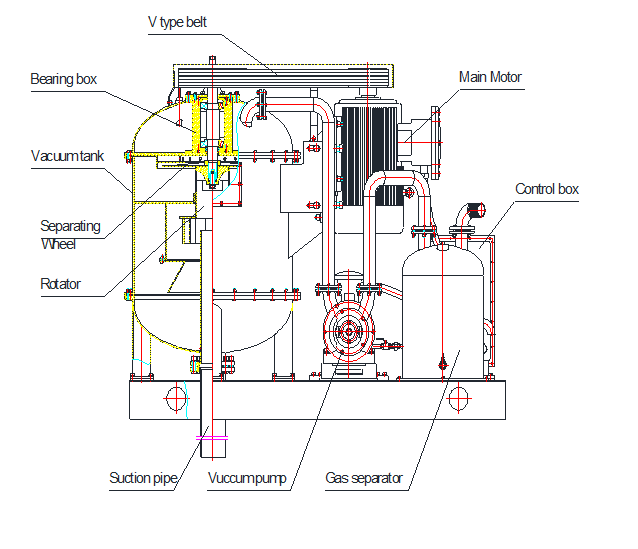

    Vacuum Degasser Structure Drawing

    Vacuum Degasser Structure Drawing
    Xi'an HL Petroleum Equipment Co., Ltd. is a company specializing in the production and development of solids control equipment. It provides various types of products and supports customized services. If you are interested in drilling fluid degasser or other products, welcome to consult. You can contact our sales team to learn more about our product specifications, customization options, prices and more. We will wholeheartedly provide you with high-quality products and professional services.
