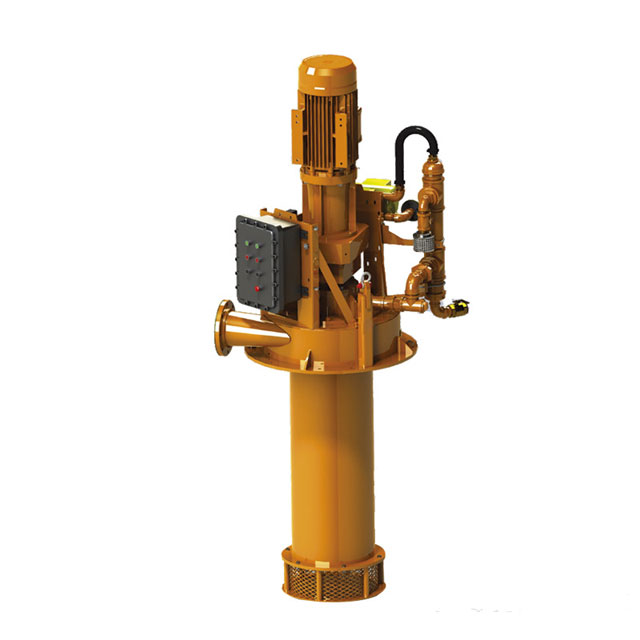

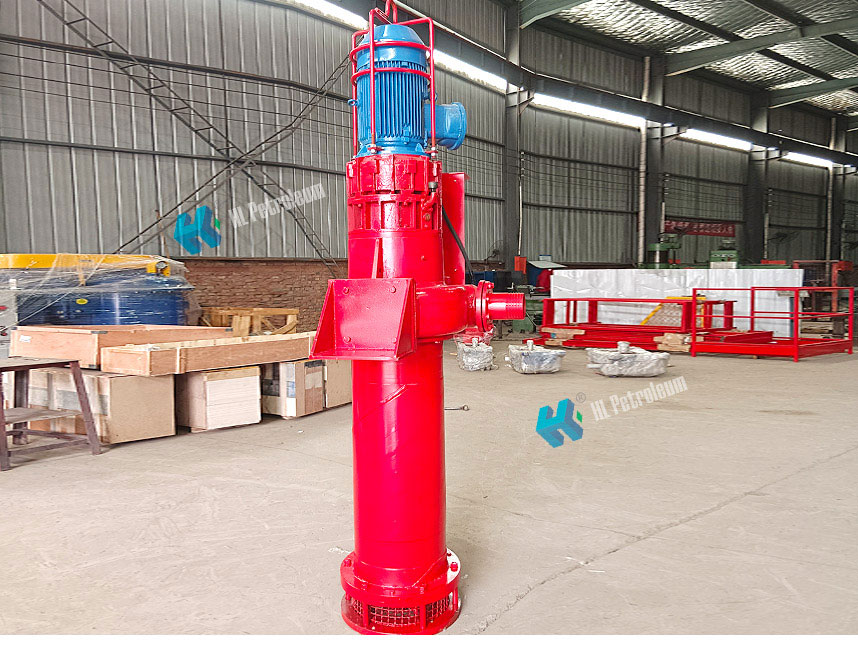

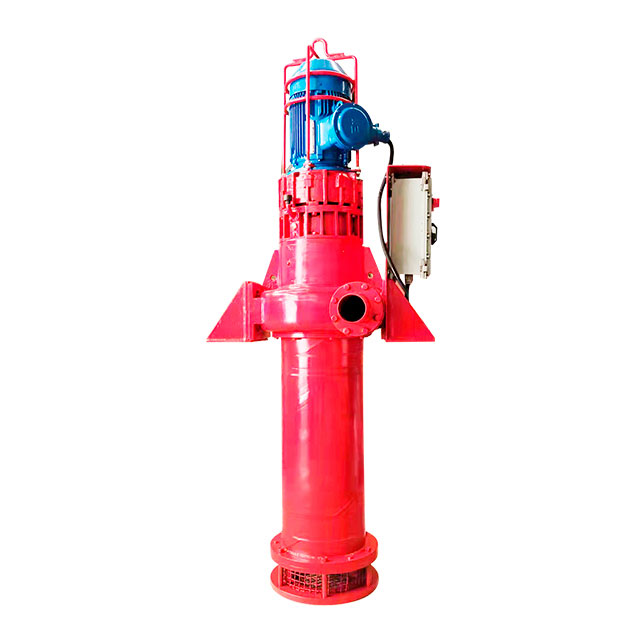

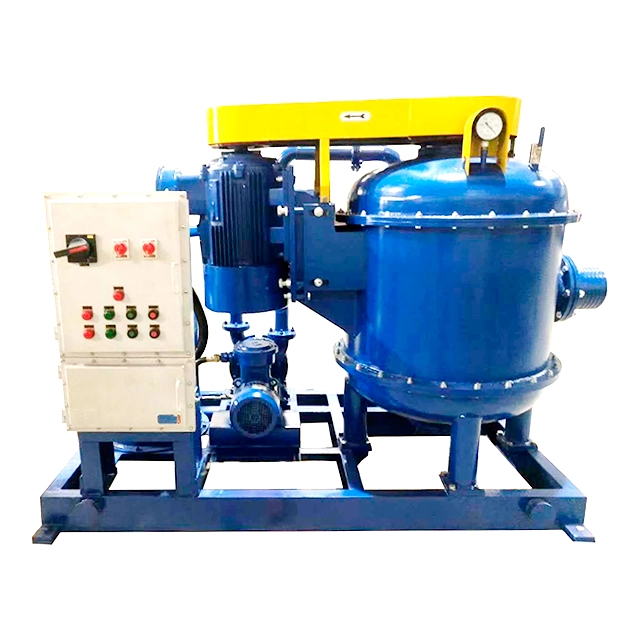

  • Centrifugal Degasser

    • Centrifugal Degasser
    • Centrifugal Degasser
    • Centrifugal Degasser

    Product Overview:

    Centrifugal Degasser is a new type of degassing equipment, which is a special equipment for processing gas intrusion drilling fluid. Usually installed after the vibrating screen. It is suitable for the matching of various mud purification systems. It plays an important role in restoring the specific gravity of the mud, stabilizing the viscosity performance of the mud, and reducing drilling costs.

    Centrifugal Degasser Details

    Centrifugal Degasser is a new type of degassing equipment, which is a special equipment for processing gas intrusion drilling fluid. Usually installed after the vibrating screen. It is suitable for the matching of various mud purification systems. It plays an important role in restoring the specific gravity of the mud, stabilizing the viscosity performance of the mud, and reducing drilling costs.
    Centrifugal Degasser
    Centrifugal Degasser Features

    1. Reasonable design and special speed reducer makes it working smooth and has a constant speed.

    2. Low noise and long service time.

    3. Wide fluid tread range:marsh funnel 20~80s

    4. Long separation blade, makes the HLCQ centrifugal degasser has a better seperation efficiency.

    5. New designed mud discharge, makes it has a big handling capacity.
    Centrifugal Degasser

    Centrifugal Degasser Parameters

    Modle

    HLCQ240

    HLCQ300

    Capacity

    240m3/h

    300m3/h

    Motor power

    11kw

    18.5kw

    Seperation efficiency

    >= 85%

    >=85%

    Voltage

    380V/50HZ 3phase



    Dimension

    2750*1185*1105mm

    3570*1280*1000mm

    Weight

    900kg

    1100kg

    mud degasser
    Xi'an HL centrifugal degasser is mainly composed of explosion-proof motor, electrical control assembly, vacuum pump assembly, reducer assembly and liquid-gas separation assembly. The structure design is reasonable, compact and excellent in performance. The degasser is equipped with liquid and gas separation blades, which improves the separation efficiency; adopts a new type of slurry discharge device, which greatly improves the processing capacity of the whole machine. When using a centrifugal degasser, the liquid-gas separator tube needs to be immersed in the drilling fluid. When the motor drives the main shaft to rotate, the gas-immersed drilling fluid is first sent into the separation cavity above it by the impeller at the bottom of the degasser, and the rotation of the separation blade in the separation cavity drives the drilling fluid to rotate accordingly. On the inner wall of the separation cylinder is formed a thin liquid layer of about 2 to 3 cm thick that moves upward in a spiral in a vortex state. The rotating liquid thin layer forms a centrifugal force field, so the gas and liquid phases are separated rapidly.

    The bubble moves toward the axis, and the liquid is close to the inner wall of the separation cylinder. When the bubbles reach the inner surface of the thin layer of cyclonic fluid, due to the negative pressure in the separation chamber of the degasser, the bubbles can quickly break through the surface tension of the liquid to burst and be quickly drawn out by the vacuum pump. The degassed drilling fluid spirally rises along the inner wall of the separation cylinder and is discharged from the discharge port.

    Centrifugal Degasser Installation

    1. Mount the degasser on a steady flat on the mud tank, and use 4 M20 screw fix the

    degasser on the flat.

    2. Connecting the pipes according to the above photo. Please notice the mud discharge pip should be longer than 5 meters. The pipe should on a same level or continuous decline from the outlet of the mud. The gas discharge pipe should keep far from the living place.

    3. When finished installation, start the machine.Make sure there has no abnormal conditions such as noises, running unsmooth and high temperature on the speed reducer. Or please stop the machine and find the problem and solve it.
    Centrifugal Degasser Installation

    1. Centrifugal degasser      2. gas outlet(Φ60×4)        3. Mud discharge pipe

    FAQ

    Q: How can I make order online?
    A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
    Q: Do you have MOQ limit?
    A: The MOQ is 1 set.
    Q: How about the delivery time?
    A: Delivery time is normally 7-10 working days after confirm the money. Depends on your quantity.
    Q: What's your warranties?
    A: 1 year after delivery
    Q: Can I buy parts separately?
    A: Yes, all of the degasser spare parts can buy separately.
